9CAZ | pdb_00009caz

Structure of kainate receptor Gluk2 in apo state

PDB DOI: https://doi.org/10.2210/pdb9CAZ/pdb
EM Map EMD-45410: EMDB EMDataResource

Classification: STRUCTURAL PROTEIN
Organism(s): Rattus norvegicus
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2024-06-18 Released: 2025-07-02
Deposition Author(s): Changping, Z., Nami, T., Guadalupe, S.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.88 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Structural dynamics of GluK2 kainate receptors in apo and partial agonist bound states

Changping, Z., Guadalupe, S., Nami, T.

To be published.

Macromolecule Content

Total Structure Weight: 412.77 kDa
Atom Count: 23,745
Modeled Residue Count: 2,978
Deposited Residue Count: 3,632
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

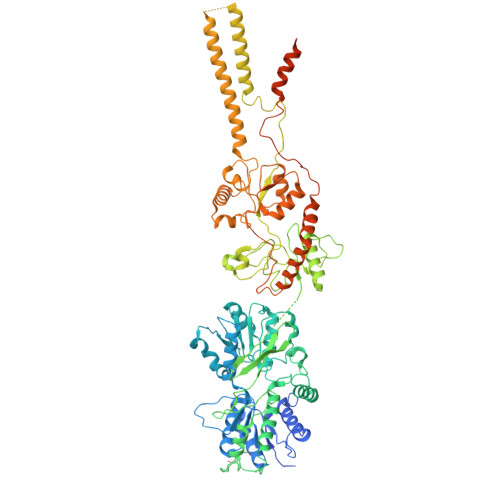

Glutamate receptor ionotropic, kainate 2	A, B, C, D	908	Rattus norvegicus	Mutation(s): 0 Gene Names: Grik2, Glur6
UniProt
Find proteins for P42260 (Rattus norvegicus) Explore P42260 Go to UniProtKB: P42260
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P42260
Glycosylation
Glycosylation Sites: 3	Glycosylation Focus chain A Focus chain B Focus chain C Focus chain D	Go to GlyGen: P42260-1
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG (Subject of Investigation/LOI) Query on NAG Download Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain H [auth B] SDF format, chain I [auth B] SDF format, chain J [auth C] SDF format, chain K [auth C] SDF format, chain L [auth D] SDF format, chain M [auth D] SDF format, chain N [auth D] SDF format, chain O [auth D] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth B] MOL2 format, chain I [auth B] MOL2 format, chain J [auth C] MOL2 format, chain K [auth C] MOL2 format, chain L [auth D] MOL2 format, chain M [auth D] MOL2 format, chain N [auth D] MOL2 format, chain O [auth D] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth B] mmCIF format, chain I [auth B] mmCIF format, chain J [auth C] mmCIF format, chain K [auth C] mmCIF format, chain L [auth D] mmCIF format, chain M [auth D] mmCIF format, chain N [auth D] mmCIF format, chain O [auth D]	E [auth A] F [auth A] G [auth A] H [auth B] I [auth B] E [auth A], F [auth A], G [auth A], H [auth B], I [auth B], J [auth C], K [auth C], L [auth D], M [auth D], N [auth D], O [auth D]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth B] Focus chain I [auth B] Focus chain J [auth C] Focus chain K [auth C] Focus chain L [auth D] Focus chain M [auth D] Focus chain N [auth D] Focus chain O [auth D] Interactions & Density Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth B] Focus chain I [auth B] Focus chain J [auth C] Focus chain K [auth C] Focus chain L [auth D] Focus chain M [auth D] Focus chain N [auth D] Focus chain O [auth D]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.88 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2025-07-02

Deposition Author(s):

Changping, Z.

Nami, T.

Guadalupe, S.

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	1R35GM147266-01
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	3R35GM147266-01S1
