9KYP | pdb_00009kyp

GH57 family amylopullulanase from Aquifex aeolicus wild type complex with beta-cyclodextrin


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.79 Å
  • R-Value Free:
    0.189 (Depositor), 0.187 (DCC)
  • R-Value Work:
    0.154 (Depositor), 0.155 (DCC)
  • R-Value Observed:
    0.156 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Mechanistic insights into cyclodextrins as substrates and inhibitors of GH57 family amylopullulanase from Aquifex aeolicus.

Zhu, Z.Li, M.Xu, Q.Huang, L.Zhou, H.Wang, W.Wang, Q.Yu, F.

(2025) J Struct Biol 217: 108199-108199

  • DOI: https://doi.org/10.1016/j.jsb.2025.108199
  • Primary Citation of Related Structures:
    9JLT, 9JLU, 9JLV, 9KYP, 9KYQ, 9KYR

  • PubMed Abstract:

    Maltooligosaccharides (MOs) have gained significant attention in the food and pharmaceutical industries owing to their valuable functional properties, including controlled sweetness, digestibility, and enhanced bioavailability. However, conventional MOs is production involves complex processing steps and significant production costs. A potential high-efficiency synthesis of specific MOs can be achieved through the ring-opening reaction of cyclodextrins (CDs) catalyzed by amylolytic enzymes. In this study, we analyze the catalytic conversion of α-, β-, and γ-CDs by a GH57 family amylopullulanase from Aquifex aeolicus (AaApu) using thin-layer chromatography (TLC). Our findings demonstrate that AaApu has a substrate specificity for γ-CD, while all three CDs exert competitive inhibition on pullulan hydrolysis. To elucidate the molecular mechanism of CDs as inhibitor and substrate of amylopullulanase, we determined high-resolution crystal structures of AaApu (wild-type and D352N) in complex with α-, β-, and γ-CD through co-crystallization. These findings establish a structure-function framework for understanding the bifunctional nature of CDs as both substrates and inhibitors in GH57 amylopullulanases.


  • Organizational Affiliation

    Shanghai Institute of Applied Physics, Chinese Academy of Sciences, Shanghai 201800, China; University of Chinese Academy of Sciences, Beijing 100049, China.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

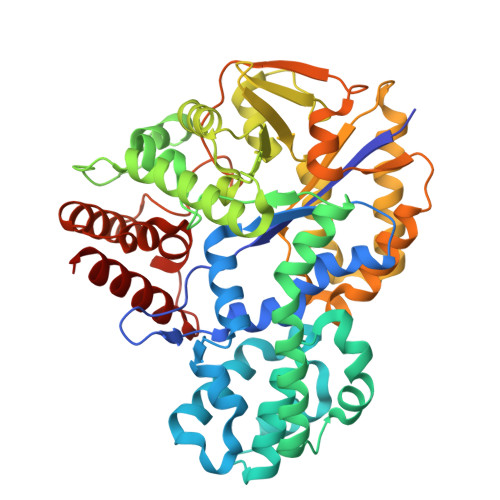

Glycoside hydrolase family 57 N-terminal domain-containing protein
A, B, C
484Aquifex aeolicus VF5Mutation(s): 0
Gene Names: aq_720
UniProt
Find proteins for O66934 (Aquifex aeolicus (strain VF5))
Explore O66934
Go to UniProtKB:  O66934
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO66934
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

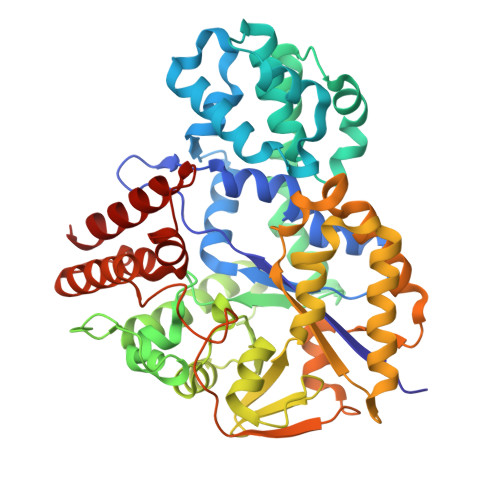

Glycoside hydrolase family 57 N-terminal domain-containing protein477Aquifex aeolicus VF5Mutation(s): 0
Gene Names: aq_720
UniProt
Find proteins for O66934 (Aquifex aeolicus (strain VF5))
Explore O66934
Go to UniProtKB:  O66934
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO66934
Sequence Annotations
Expand
  • Reference Sequence
Oligosaccharides

Help

Entity ID: 3
MoleculeChains Length2D Diagram Glycosylation3D Interactions
Cycloheptakis-(1-4)-(alpha-D-glucopyranose)
E, F, G, H
7N/A
Glycosylation Resources
GlyTouCan:  G01435GL
GlyCosmos:  G01435GL
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
PEG
Query on PEG

Download Ideal Coordinates CCD File
CA [auth D],
DA [auth D]
DI(HYDROXYETHYL)ETHER
C4 H10 O3
MTHSVFCYNBDYFN-UHFFFAOYSA-N
GOL
Query on GOL

Download Ideal Coordinates CCD File
AA [auth D]
BA [auth D]
I [auth A]
J [auth A]
K [auth A]
AA [auth D],
BA [auth D],
I [auth A],
J [auth A],
K [auth A],
L [auth A],
M [auth A],
Q [auth B],
R [auth B],
S [auth B],
U [auth C],
V [auth C],
Y [auth D],
Z [auth D]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
EDO
Query on EDO

Download Ideal Coordinates CCD File
EA [auth D]
FA [auth D]
GA [auth D]
N [auth A]
O [auth A]
EA [auth D],
FA [auth D],
GA [auth D],
N [auth A],
O [auth A],
P [auth A],
T [auth B],
W [auth C],
X [auth C]
1,2-ETHANEDIOL
C2 H6 O2
LYCAIKOWRPUZTN-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.79 Å
  • R-Value Free:  0.189 (Depositor), 0.187 (DCC)
  • R-Value Work:  0.154 (Depositor), 0.155 (DCC)
  • R-Value Observed: 0.156 (Depositor)
Space Group: P 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 40.83α = 84.04
b = 61.5β = 89.46
c = 195.54γ = 89.09
Software Package:
Software NamePurpose
PHENIXrefinement
Aimlessdata scaling
XDSdata reduction
PHENIXphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other governmentChina--

Revision History  (Full details and data files)

  • Version 1.0: 2025-06-04
    Type: Initial release
