1D0B

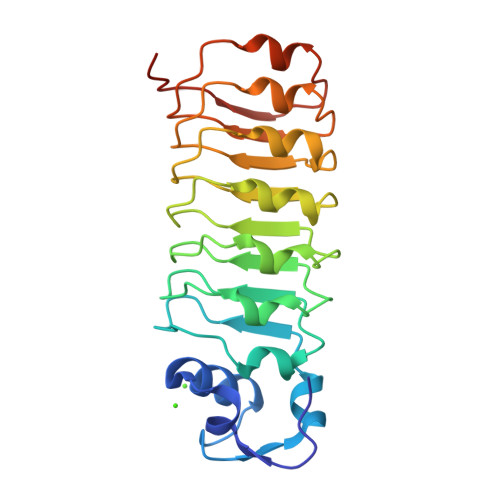

INTERNALIN B LEUCINE RICH REPEAT DOMAIN


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.86 Å
  • R-Value Free: 0.235
  • R-Value Work: 0.207
  • R-Value Observed: 0.210

wwPDB Validation   3D Report Full Report


This is version 1.3 of the entry. See complete history


Literature

Structure of the lnlB leucine-rich repeats, a domain that triggers host cell invasion by the bacterial pathogen L. monocytogenes.

Marino, M.Braun, L.Cossart, P.Ghosh, P.

(1999) Mol Cell 4: 1063-1072

  • DOI: https://doi.org/10.1016/s1097-2765(00)80234-8
  • Primary Citation of Related Structures:
    1D0B

  • PubMed Abstract:

    The L. monocytogenes protein lnlB activates phosphoinositide 3-kinase and induces phagocytosis in several mammalian cell types. The 1.86 A resolution X-ray crystal structure of the leucine-rich repeat domain of lnlB that is both necessary and sufficient to induce phagocytosis is presented here. The structure supports a crucial role for calcium in host cell invasion by L. monocytogenes and supplies a rationale for its function. Calciums are bound to the protein in an unusually exposed manner that suggests that the metals may act as a bridge between lnlB and mammalian cell surface receptors. The structure also identifies surfaces on the curved and elongated molecule that may constitute additional interaction sites in forming a bacterial-mammalian signaling complex.


  • Organizational Affiliation

    Department of Chemistry and Biochemistry, University of California, San Diego, La Jolla 92093-0314, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
INTERNALIN B213Listeria monocytogenesMutation(s): 0
UniProt
Find proteins for P0DQD2 (Listeria monocytogenes serovar 1/2a (strain ATCC BAA-679 / EGD-e))
Explore P0DQD2
Go to UniProtKB:  P0DQD2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0DQD2
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.86 Å
  • R-Value Free: 0.235
  • R-Value Work: 0.207
  • R-Value Observed: 0.210
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 45.41α = 90
b = 56.92β = 90
c = 84.35γ = 90
Software Package:
Software NamePurpose
CCP4model building
SOLVEphasing
SHARPphasing
CNSrefinement
DENZOdata reduction
SCALEPACKdata scaling
CCP4phasing

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2000-01-07
    Type: Initial release
  • Version 1.1: 2008-04-27
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
  • Version 1.3: 2024-02-07
    Changes: Data collection, Database references, Derived calculations
