1FVK

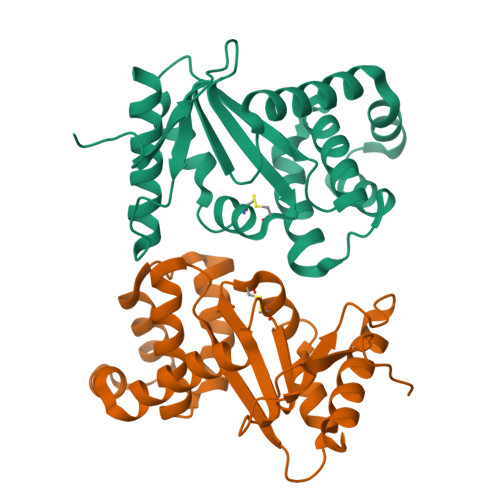

THE 1.7 ANGSTROM STRUCTURE OF WILD TYPE DISULFIDE BOND FORMATION PROTEIN (DSBA)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free: 0.231
  • R-Value Work: 0.198
  • R-Value Observed: 0.198

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.4 of the entry. See complete history


Literature

Structural analysis of three His32 mutants of DsbA: support for an electrostatic role of His32 in DsbA stability.

Guddat, L.W.Bardwell, J.C.Glockshuber, R.Huber-Wunderlich, M.Zander, T.Martin, J.L.

(1997) Protein Sci 6: 1893-1900

  • DOI: https://doi.org/10.1002/pro.5560060910
  • Primary Citation of Related Structures:
    1AC1, 1ACV, 1FVJ, 1FVK

  • PubMed Abstract:

    DsbA, a 21-kDa protein from Escherichia coli, is a potent oxidizing disulfide catalyst required for disulfide bond formation in secreted proteins. The active site of DsbA is similar to that of mammalian protein disulfide isomerases, and includes a reversible disulfide bond formed from cysteines separated by two residues (Cys30-Pro31-His32-Cys33). Unlike most protein disulfides, the active-site disulfide of DsbA is highly reactive and the oxidized form of DsbA is much less stable than the reduced form at physiological pH. His32, one of the two residues between the active-site cysteines, is critical to the oxidizing power of DsbA and to the relative instability of the protein in the oxidized form. Mutation of this single residue to tyrosine, serine, or leucine results in a significant increase in stability (of approximately 5-7 kcal/mol) of the oxidized His32 variants relative to the oxidized wild-type protein. Despite the dramatic changes in stability, the structures of all three oxidized DsbA His32 variants are very similar to the wild-type oxidized structure, including conservation of solvent atoms near the active-site residue, Cys30. These results show that the His32 residue does not exert a conformational effect on the structure of DsbA. The destabilizing effect of His32 on oxidized DsbA is therefore most likely electrostatic in nature.


  • Organizational Affiliation

    Centre for Drug Design and Development, University of Queensland, Brisbane, Australia.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
DISULFIDE BOND FORMATION PROTEIN
A, B
189Escherichia coliMutation(s): 0
UniProt
Find proteins for P0AEG4 (Escherichia coli (strain K12))
Explore P0AEG4
Go to UniProtKB:  P0AEG4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AEG4
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free: 0.231
  • R-Value Work: 0.198
  • R-Value Observed: 0.198
  • Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 117.7α = 90
b = 65.1β = 126.3
c = 76.4γ = 90
Software Package:
Software NamePurpose
RIGAKUdata collection
RIGAKUdata reduction
X-PLORmodel building
X-PLORrefinement
RIGAKUdata scaling
X-PLORphasing

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 1997-08-20
    Type: Initial release
  • Version 1.1: 2008-03-24
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
  • Version 1.3: 2023-08-09
    Changes: Database references, Other, Refinement description
  • Version 1.4: 2024-10-30
    Changes: Data collection, Structure summary
