3DDR

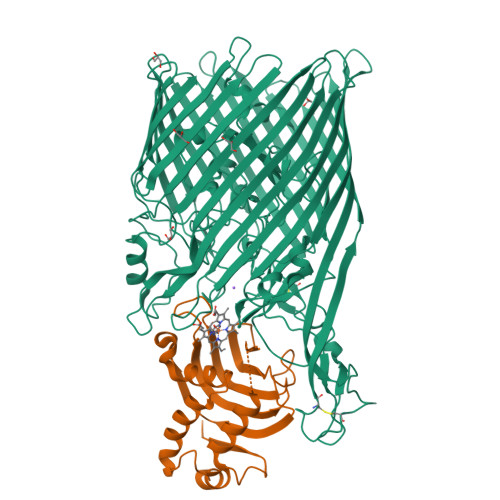

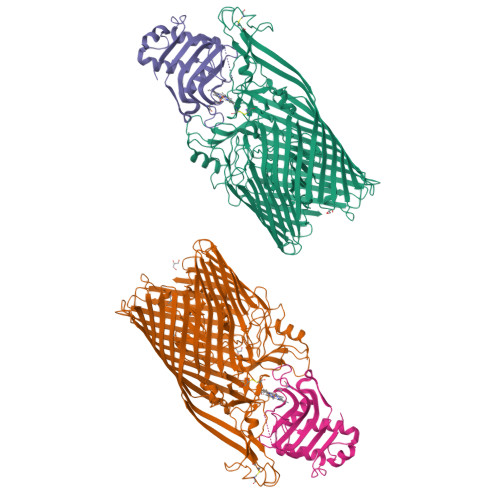

Structure of the Serratia marcescens hemophore receptor HasR-Ile671Gly mutant in complex with its hemophore HasA and heme


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.80 Å
  • R-Value Free: 0.262
  • R-Value Work: 0.226
  • R-Value Observed: 0.227

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.6 of the entry. See complete history


Literature

Heme uptake across the outer membrane as revealed by crystal structures of the receptor-hemophore complex.

Krieg, S.Huche, F.Diederichs, K.Izadi-Pruneyre, N.Lecroisey, A.Wandersman, C.Delepelaire, P.Welte, W.

(2009) Proc Natl Acad Sci U S A 106: 1045-1050

  • DOI: https://doi.org/10.1073/pnas.0809406106
  • Primary Citation of Related Structures:
    3CSL, 3CSN, 3DDR

  • PubMed Abstract:

    Gram-negative bacteria use specific heme uptake systems, relying on outer membrane receptors and excreted heme-binding proteins (hemophores) to scavenge and actively transport heme. To unravel the unknown molecular details involved, we present 3 structures of the Serratia marcescens receptor HasR in complex with its hemophore HasA. The transfer of heme over a distance of 9 A from its high-affinity site in HasA into a site of lower affinity in HasR is coupled with the exergonic complex formation of the 2 proteins. Upon docking to the receptor, 1 of the 2 axial heme coordinations of the hemophore is initially broken, but the position and orientation of the heme is preserved. Subsequently, steric displacement of heme by a receptor residue ruptures the other axial coordination, leading to heme transfer into the receptor.


  • Organizational Affiliation

    Fachbereich Biologie, Universität Konstanz, 78457 Konstanz, Germany.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
HasR protein
A, B
865Serratia marcescensMutation(s): 1
Gene Names: hasR
Membrane Entity: Yes
UniProt
Find proteins for Q79AD2 (Serratia marcescens)
Explore Q79AD2
Go to UniProtKB:  Q79AD2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ79AD2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Hemophore HasA
C, D
206Serratia marcescensMutation(s): 0
Gene Names: hasA
UniProt
Find proteins for Q54450 (Serratia marcescens)
Explore Q54450
Go to UniProtKB:  Q54450
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ54450
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
HEM
Query on HEM

Download Ideal Coordinates CCD File
M [auth C],
N [auth D]
PROTOPORPHYRIN IX CONTAINING FE
C34 H32 Fe N4 O4
KABFMIBPWCXCRK-RGGAHWMASA-L
GOL
Query on GOL

Download Ideal Coordinates CCD File
F [auth A]
H [auth B]
I [auth B]
J [auth B]
K [auth B]
F [auth A],
H [auth B],
I [auth B],
J [auth B],
K [auth B],
L [auth B]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
NA
Query on NA

Download Ideal Coordinates CCD File
E [auth A],
G [auth B]
SODIUM ION
Na
FKNQFGJONOIPTF-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.80 Å
  • R-Value Free: 0.262
  • R-Value Work: 0.226
  • R-Value Observed: 0.227
  • Space Group: F 2 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 157.41α = 90
b = 162.72β = 90
c = 597.01γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
XSCALEdata scaling
PHENIXphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2009-01-20
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Non-polymer description, Version format compliance
  • Version 1.2: 2011-11-16
    Changes: Atomic model
  • Version 1.3: 2012-03-21
    Changes: Database references
  • Version 1.4: 2017-10-25
    Changes: Refinement description
  • Version 1.5: 2021-10-20
    Changes: Database references, Derived calculations
  • Version 1.6: 2024-11-13
    Changes: Data collection, Refinement description, Structure summary
