5VA8 | pdb_00005va8

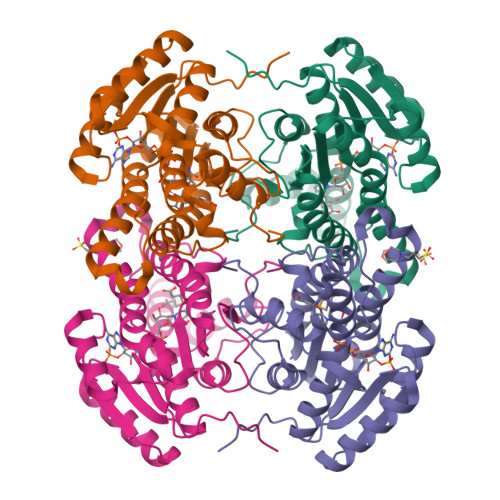

Crystal Structure of Short-chain dehydrogenase/reductase SDR from Burkholderia phymatum in complex with NADP

PDB DOI: https://doi.org/10.2210/pdb5VA8/pdb

Classification: OXIDOREDUCTASE
Organism(s): Paraburkholderia phymatum STM815
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2017-03-24 Released: 2017-04-26
Deposition Author(s): Seattle Structural Genomics Center for Infectious Disease (SSGCID)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.60 Å
R-Value Free:
0.177 (Depositor), 0.180 (DCC)
R-Value Work:
0.149 (Depositor), 0.150 (DCC)
R-Value Observed:
0.149 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.1 of the entry. See complete history.

Literature

Crystal Structure of Short-chain dehydrogenase/reductase SDR from Burkholderia phymatum in complex with NADP

Delker, S.L., Edwards, T.E., Lorimer, D.

To be published.

Macromolecule Content

Total Structure Weight: 115.71 kDa
Atom Count: 9,211
Modelled Residue Count: 1,044
Deposited Residue Count: 1,068
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Short-chain dehydrogenase/reductase SDR	A, B, C, D	267	Paraburkholderia phymatum STM815	Mutation(s): 0 Gene Names: Bphy_2062
UniProt
Find proteins for B2JE32 (Paraburkholderia phymatum (strain DSM 17167 / CIP 108236 / LMG 21445 / STM815)) Explore B2JE32 Go to UniProtKB: B2JE32
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	B2JE32
Sequence Annotations Expand
Reference Sequence LOADING

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAP Query on NAP Download Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain J [auth C] SDF format, chain M [auth D] SDF format, chain H [auth B] MOL2 format, chain E [auth A] MOL2 format, chain J [auth C] MOL2 format, chain M [auth D] MOL2 format, chain H [auth B] mmCIF format, chain E [auth A] mmCIF format, chain J [auth C] mmCIF format, chain M [auth D] mmCIF format, chain H [auth B]	E [auth A], H [auth B], J [auth C], M [auth D]	NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE C₂₁ H₂₈ N₇ O₁₇ P₃ XJLXINKUBYWONI-NNYOXOHSSA-N		Interactions Focus chain E [auth A] Focus chain H [auth B] Focus chain J [auth C] Focus chain M [auth D] Interactions & Density Focus chain E [auth A] Focus chain H [auth B] Focus chain J [auth C] Focus chain M [auth D]
TCE Query on TCE Download Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain I [auth B] SDF format, chain K [auth C] SDF format, chain N [auth D] MOL2 format, chain F [auth A] MOL2 format, chain I [auth B] MOL2 format, chain K [auth C] MOL2 format, chain N [auth D] mmCIF format, chain F [auth A] mmCIF format, chain I [auth B] mmCIF format, chain K [auth C] mmCIF format, chain N [auth D]	F [auth A], I [auth B], K [auth C], N [auth D]	3,3',3''-phosphanetriyltripropanoic acid C₉ H₁₅ O₆ P PZBFGYYEXUXCOF-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Focus chain I [auth B] Focus chain K [auth C] Focus chain N [auth D] Interactions & Density Focus chain F [auth A] Focus chain I [auth B] Focus chain K [auth C] Focus chain N [auth D]
MPO Query on MPO Download Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain L [auth C] SDF format, chain O [auth D] MOL2 format, chain G [auth A] MOL2 format, chain L [auth C] MOL2 format, chain O [auth D] mmCIF format, chain G [auth A] mmCIF format, chain L [auth C] mmCIF format, chain O [auth D]	G [auth A], L [auth C], O [auth D]	3[N-MORPHOLINO]PROPANE SULFONIC ACID C₇ H₁₅ N O₄ S DVLFYONBTKHTER-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Focus chain L [auth C] Focus chain O [auth D] Interactions & Density Focus chain G [auth A] Focus chain L [auth C] Focus chain O [auth D]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.60 Å
R-Value Free: 0.177 (Depositor), 0.180 (DCC)
R-Value Work: 0.149 (Depositor), 0.150 (DCC)
R-Value Observed: 0.149 (Depositor)

Space Group: P 2₁ 2₁ 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 133.56	α = 90
b = 75.13	β = 90
c = 109.88	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
XDS	data scaling
PHENIX	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History

Deposition Data

Released Date: 2017-04-26

Deposition Author(s):

Seattle Structural Genomics Center for Infectious Disease (SSGCID)

Revision History (Full details and data files)

Version 1.0: 2017-04-26
Type: Initial release
Version 1.1: 2023-10-04
Changes: Data collection, Database references, Other, Refinement description
