8ZMT

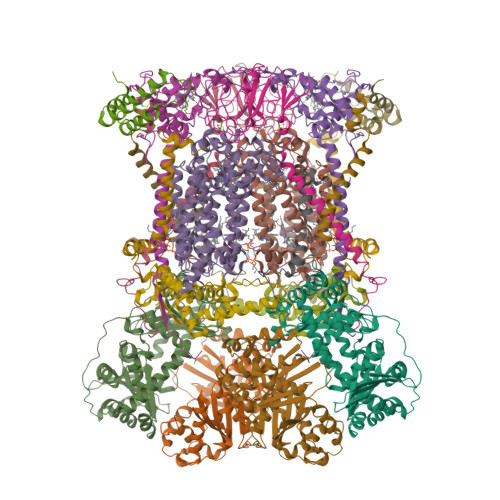

Cryo-EM structure of Saccharomyces cerevisiae bc1 complex in Metyltetraprole-bound state


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.52 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Cryo-EM Structures Reveal the Unique Binding Modes of Metyltetraprole in Yeast and Porcine Cytochrome bc 1 Complex Enabling Rational Design of Inhibitors.

Wang, Y.X.Ye, Y.Li, Z.W.Cui, G.R.Shi, X.X.Dong, Y.Jiang, J.J.Sun, J.Y.Guan, Z.W.Zhang, N.Wu, Q.Y.Wang, F.Zhu, X.L.Yang, G.F.

(2024) J Am Chem Soc 146: 33903-33913

  • DOI: https://doi.org/10.1021/jacs.4c12595
  • Primary Citation of Related Structures:
    8YHQ, 8YIN, 8ZMT, 8ZOS, 8ZOW, 8ZP0

  • PubMed Abstract:

    Cytochrome bc 1 (complex III) represents a significant target for the discovery of both drugs and fungicides. Metyltetraprole (MET) is commonly classified as a quinone site inhibitor (Q o I) that combats the G143A mutated isolate, which confers high resistance to strobilurin fungicides such as pyraclostrobin (PYR). The binding mode and antiresistance mechanism of MET remain unclear. Here, we determined the high-resolution structures of inhibitor-bound S. cerevisiae complex III (MET, 2.52 Å; PYR, 2.42 Å) and inhibitor-bound porcine complex III (MET, 2.53 Å; PYR, 2,37 Å) by cryo-electron microscopy. The distinct binding modes of MET and PYR were observed for the first time. Notably, the MET exhibited different binding modes in the two species. In S. cerevisiae , the binding site of MET was the same as PYR, serving as a Pm -type inhibitor of the Q o site. However, in porcine, MET acted as a dual-target inhibitor of both Q o and Q i . Based on the structural insights, a novel inhibitor (YF23694) was discovered and demonstrated excellent fungicidal activity against downy mildew and powdery mildew fungi. This work provides a new starting point for the design of the next generation of inhibitors to overcome the resistance.


  • Organizational Affiliation

    State Key Laboratory of Green Pesticide, International Joint Research Center for Intelligent Biosensor Technology and Health, Central China Normal University, Wuhan 430079, PR China.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
COR1 isoform 1A,
J [auth L]
431Saccharomyces cerevisiaeMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Cytochrome b-c1 complex subunit 2, mitochondrialB,
K [auth M]
352Saccharomyces cerevisiaeMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Cytochrome bC,
L [auth N]
385Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for A0A0G3F5W7 (Saccharomyces cerevisiae)
Explore A0A0G3F5W7
Go to UniProtKB:  A0A0G3F5W7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A0G3F5W7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
Cytochrome c1, heme protein, mitochondrialD,
M [auth O]
248Saccharomyces cerevisiaeMutation(s): 0
EC: 7.1.1.8
UniProt
Find proteins for A0A5B9RH60 (Saccharomyces cerevisiae)
Explore A0A5B9RH60
Go to UniProtKB:  A0A5B9RH60
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A5B9RH60
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
Cytochrome b-c1 complex subunit Rieske, mitochondrialE,
N [auth P]
185Saccharomyces cerevisiaeMutation(s): 0
EC: 7.1.1.8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
Cytochrome b-c1 complex subunit 6, mitochondrialF,
O [auth Q]
75Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P00127 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P00127
Go to UniProtKB:  P00127
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP00127
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
Cytochrome b-c1 complex subunit 7G,
P [auth R]
126Saccharomyces cerevisiaeMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
Cytochrome b-c1 complex subunit 8H,
Q [auth S]
93Saccharomyces cerevisiaeMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage
Cytochrome b-c1 complex subunit 9, mitochondrialI,
R [auth T]
55Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P22289 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P22289
Go to UniProtKB:  P22289
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP22289
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage
Cytochrome b-c1 complex subunit 10, mitochondrialS [auth U],
T [auth V]
52Saccharomyces cerevisiaeMutation(s): 0
UniProt
Find proteins for P37299 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P37299
Go to UniProtKB:  P37299
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP37299
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 9 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
CN3
Query on CN3

Download Ideal Coordinates CCD File
MA [auth N],
V [auth C]
(2R,5S,11R,14R)-5,8,11-trihydroxy-2-(nonanoyloxy)-5,11-dioxido-16-oxo-14-[(propanoyloxy)methyl]-4,6,10,12,15-pentaoxa-5,11-diphosphanonadec-1-yl undecanoate
C36 H68 O17 P2
FMNZIMGRZPIVKW-XWHIBYANSA-N
8PE
Query on 8PE

Download Ideal Coordinates CCD File
IA [auth N],
Z [auth C]
(2R)-3-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-2-(tetradecanoyloxy)propyl octadecanoate
C37 H74 N O8 P
RFJQNULIDFTTLL-PGUFJCEWSA-N
CN5
Query on CN5

Download Ideal Coordinates CCD File
LA [auth N](5S,11R)-5,8,11-trihydroxy-5,11-dioxido-17-oxo-4,6,10,12,16-pentaoxa-5,11-diphosphaoctadec-1-yl pentadecanoate
C26 H52 O13 P2
UKWPDXFRXMWSMQ-VWLOTQADSA-N
HEM
Query on HEM

Download Ideal Coordinates CCD File
BA [auth D]
KA [auth N]
NA [auth N]
OA [auth O]
X [auth C]
BA [auth D],
KA [auth N],
NA [auth N],
OA [auth O],
X [auth C],
Y [auth C]
PROTOPORPHYRIN IX CONTAINING FE
C34 H32 Fe N4 O4
KABFMIBPWCXCRK-RGGAHWMASA-L
9PE
Query on 9PE

Download Ideal Coordinates CCD File
JA [auth N],
W [auth C]
(1R)-2-{[(S)-(2-aminoethoxy)(hydroxy)phosphoryl]oxy}-1-[(heptanoyloxy)methyl]ethyl octadecanoate
C30 H60 N O8 P
RWBMCOYSJCETON-MUUNZHRXSA-N
UQ6
Query on UQ6

Download Ideal Coordinates CCD File
AA [auth C],
HA [auth N]
5-(3,7,11,15,19,23-HEXAMETHYL-TETRACOSA-2,6,10,14,18,22-HEXAENYL)-2,3-DIMETHOXY-6-METHYL-BENZENE-1,4-DIOL
C39 H60 O4
DYOSCPIQEYRQEO-XQCASOQKSA-N
6PH
Query on 6PH

Download Ideal Coordinates CCD File
CA [auth D],
EA [auth E],
FA [auth L]
(1R)-2-(phosphonooxy)-1-[(tridecanoyloxy)methyl]ethyl pentadecanoate
C31 H61 O8 P
UOOPRMYYAWVCCZ-GDLZYMKVSA-N
A1D6P (Subject of Investigation/LOI)
Query on A1D6P

Download Ideal Coordinates CCD File
GA [auth N],
U [auth C]
1-[2-[[1-(4-chlorophenyl)pyrazol-3-yl]oxymethyl]-3-methyl-phenyl]-4-methyl-1,2,3,4-tetrazol-5-one
C19 H17 Cl N6 O2
XUQQRGKFXLAPNV-UHFFFAOYSA-N
FES
Query on FES

Download Ideal Coordinates CCD File
DA [auth E],
PA [auth P]
FE2/S2 (INORGANIC) CLUSTER
Fe2 S2
NIXDOXVAJZFRNF-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.52 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX
MODEL REFINEMENTCoot

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China--

Revision History  (Full details and data files)

  • Version 1.0: 2024-12-25
    Type: Initial release
