2P3N

Thermotoga maritima IMPase TM1415


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.20 Å
  • R-Value Free: 0.279
  • R-Value Work: 0.207
  • R-Value Observed: 0.209

Starting Model: in silico
View more details

wwPDB Validation   3D Report Full Report


This is version 1.5 of the entry. See complete history


Literature

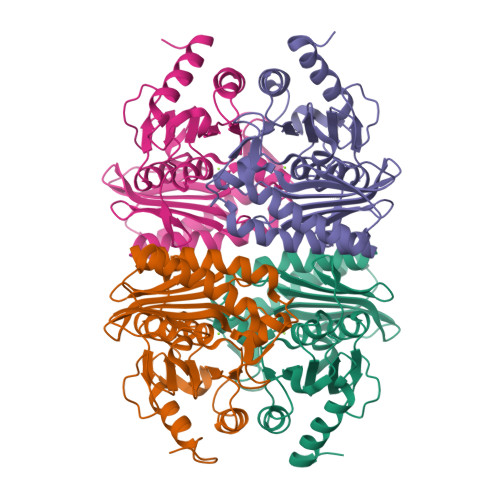

Crystal structure of the tetrameric inositol 1-phosphate phosphatase (TM1415) from the hyperthermophile, Thermotoga maritima.

Stieglitz, K.A.Roberts, M.F.Li, W.Stec, B.

(2007) FEBS J 274: 2461-2469

  • DOI: https://doi.org/10.1111/j.0014-2956.2007.05779.x
  • Primary Citation of Related Structures:
    2P3N, 2P3V

  • PubMed Abstract:

    The structure of the first tetrameric inositol monophosphatase (IMPase) has been solved. This enzyme, from the eubacterium Thermotoga maritima, similarly to its archaeal homologs exhibits dual specificity with both IMPase and fructose-1,6-bisphosphatase activities. The tetrameric structure of this unregulated enzyme is similar, in its quaternary assembly, to the allosterically regulated tetramer of fructose-1,6-bisphosphatase. The individual dimers are similar to the human IMPase. Additionally, the structures of two crystal forms of IMPase show significant differences. In the first crystal form, the tetrameric structure is symmetrical, with the active site loop in each subunit folded into a beta-hairpin conformation. The second form is asymmetrical and shows an unusual structural change. Two of the subunits have the active site loop folded into a beta-hairpin structure, whereas in the remaining two subunits the same loop adopts an alpha-helical conformation.


  • Organizational Affiliation

    Merkert Chemistry Center, Boston College, Chestnut Hill, MA, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Inositol-1-monophosphatase
A, B, C, D
256Thermotoga maritima MSB8Mutation(s): 0
Gene Names: suhB
EC: 3.1.3.25 (PDB Primary Data), 3.1.3.11 (UniProt)
UniProt
Find proteins for O33832 (Thermotoga maritima (strain ATCC 43589 / DSM 3109 / JCM 10099 / NBRC 100826 / MSB8))
Explore O33832
Go to UniProtKB:  O33832
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO33832
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.20 Å
  • R-Value Free: 0.279
  • R-Value Work: 0.207
  • R-Value Observed: 0.209
  • Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 62.024α = 90
b = 103.873β = 101.93
c = 80.512γ = 90
Software Package:
Software NamePurpose
StructureStudiodata collection
MOLREPphasing
CNSrefinement
HKL-2000data reduction
SCALEPACKdata scaling

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2007-04-24
    Type: Initial release
  • Version 1.1: 2008-05-01
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Source and taxonomy, Version format compliance
  • Version 1.3: 2024-02-21
    Changes: Data collection, Database references, Derived calculations
  • Version 1.4: 2024-04-03
    Changes: Refinement description
  • Version 1.5: 2024-08-07
    Changes: Refinement description
