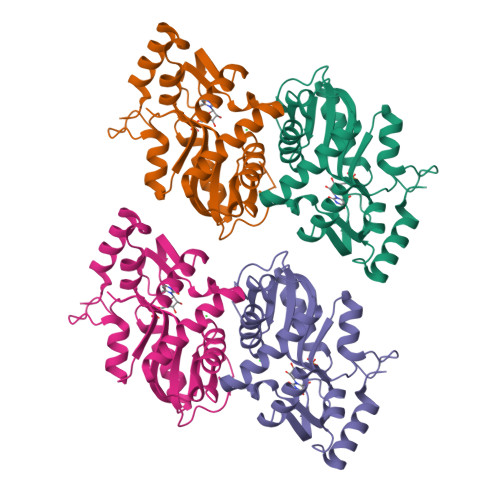

2PRZ

S. cerevisiae orotate phosphoribosyltransferase complexed with OMP


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.90 Å
  • R-Value Free: 0.262
  • R-Value Work: 0.229
  • R-Value Observed: 0.230

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.3 of the entry. See complete history


Literature

Ternary complex formation and induced asymmetry in orotate phosphoribosyltransferase.

Gonzalez-Segura, L.Witte, J.F.McClard, R.W.Hurley, T.D.

(2007) Biochemistry 46: 14075-14086

  • DOI: https://doi.org/10.1021/bi701023z
  • Primary Citation of Related Structures:
    2PRY, 2PRZ, 2PS1

  • PubMed Abstract:

    Orotate phosphoribosyltransferase (OPRTase, EC 2.4.2.10) catalyzes the Mg2+-dependent condensation of orotic acid (OA) with PRPP (5-alpha-d-phosphorylribose 1-diphosphate) to yield diphosphate (PPi) and the nucleotide OMP (orotidine 5'-monophosphate). We have determined the structures of three forms of Saccharomyces cerevisiae OPRTase representing different structural and enzymatic intermediates. The structures include the apoenzyme (2.35 A resolution); a ternary complex of enzyme, Mg2+-PRPP, and OA (1.74 A resolution); and the binary product complex of enzyme with OMP (1.89 A resolution). While the overall structure of the S. cerevisiae OPRTase is similar to that of the Salmonella typhimurium enzyme, as judged by comparison of the two apoenzymes, large conformational transitions occur proceeding from the apoenzyme structure to those of the substrate and product complexes. Comparison of these structures reveals a rotation of the upper hood domain onto the bound ligands by an average of 19.5 degrees in the OMP structure and an average of 24.6 degrees in the OA/Mg2+-PRPP ternary complex. As expected, the conserved loop, composed of residues 104-116, moves extensively and adopts a single stable conformation during the catalytic cycle in order to sequester the substrates from bulk solvent in the ternary complex. The OA and Mg2+-PRPP molecules bound in the ternary complex are oriented for proper attack of the N1 atom of OA onto the C1 atom of the ribose ring. This orientation of substrates, combined with the positioning of the flexible loop, provides a clear picture of a catalytically poised reaction complex for type I phosphoribosyltransferases. The structural asymmetry present in these structures, as well as that found in a recent structure of the S. typhimurium enzyme, combined with the closure of the flexible loop from one subunit into the active site of the opposing subunit in the ternary complex is consistent with the kinetic data [McClard, R. W., et al. (2006) Biochemistry 45, 5330-5342] that demonstrate induced nonequivalence and cooperativity of OPRTase.


  • Organizational Affiliation

    Department of Biochemistry and Molecular Biology, Indiana University School of Medicine, Indianapolis, Indiana 46202, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Orotate phosphoribosyltransferase 1
A, B, C, D
226Saccharomyces cerevisiaeMutation(s): 0
Gene Names: URA5PYR5
EC: 2.4.2.10
UniProt
Find proteins for P13298 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P13298
Go to UniProtKB:  P13298
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP13298
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
OMP
Query on OMP

Download Ideal Coordinates CCD File
F [auth A],
H [auth B],
J [auth C],
L [auth D]
OROTIDINE-5'-MONOPHOSPHATE
C10 H13 N2 O11 P
KYOBSHFOBAOFBF-XVFCMESISA-N
CL
Query on CL

Download Ideal Coordinates CCD File
E [auth A],
G [auth B],
I [auth C],
K [auth D]
CHLORIDE ION
Cl
VEXZGXHMUGYJMC-UHFFFAOYSA-M
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.90 Å
  • R-Value Free: 0.262
  • R-Value Work: 0.229
  • R-Value Observed: 0.230
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 86.063α = 90
b = 99.475β = 90
c = 111.995γ = 90
Software Package:
Software NamePurpose
DENZOdata reduction
SCALEPACKdata scaling
REFMACrefinement
PDB_EXTRACTdata extraction
ADSCdata collection
HKL-2000data reduction
HKL-2000data scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2008-01-15
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Version format compliance
  • Version 1.2: 2017-10-18
    Changes: Refinement description
  • Version 1.3: 2023-08-30
    Changes: Data collection, Database references, Derived calculations, Refinement description
