3KSE | pdb_00003kse

Unreduced cathepsin L in complex with stefin A

• PDB DOI: https://doi.org/10.2210/pdb3KSE/pdb

• Classification: Hydrolase/Hydrolase inhibitor
• Organism(s): Homo sapiens
• Expression System: Komagataella pastoris, Escherichia coli BL21(DE3)
• Mutation(s): Yes


• Deposited: 2009-11-22 Released: 2010-12-01
• Deposition Author(s): Renko, M., Turk, D.

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.71 Å
• R-Value Free:
  0.204 (Depositor), 0.200 (DCC)
• R-Value Work:
  0.153 (Depositor), 0.150 (DCC)
• R-Value Observed:
  0.155 (Depositor)

Starting Models: experimental

Literature

Unreduced cathepsin L in complex with stefin A

Renko, M., Turk, D.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 2-mer - A1B1

Biological assembly 1 assigned by authors and generated by PISA (software)

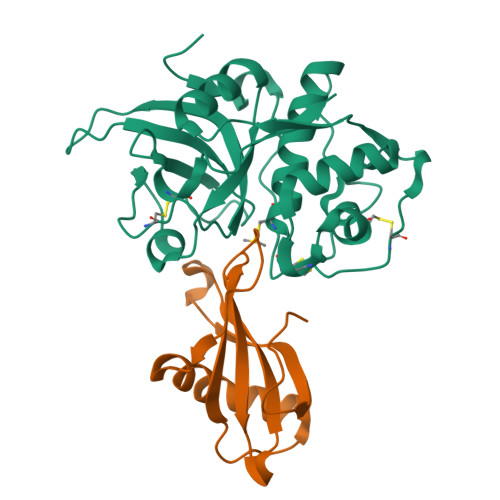

Biological Assembly 2

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 2-mer - A1B1

Biological assembly 2 assigned by authors and generated by PISA (software)

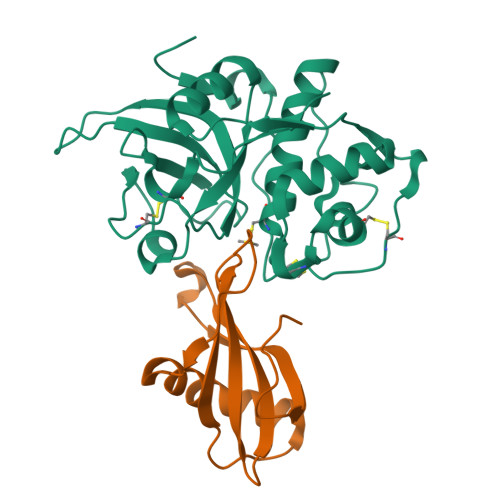

Biological Assembly 3

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 2-mer - A1B1

Biological assembly 3 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 105.69 kDa
• Atom Count: 8,650
• Modelled Residue Count: 954
• Deposited Residue Count: 954
• Unique protein chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Cathepsin L1	A, B, C	220	Homo sapiens	Mutation(s): 2  EC: 3.4.22.15
UniProt & NIH Common Fund Data Resources
Find proteins for P07711 (Homo sapiens) Explore P07711  Go to UniProtKB:  P07711
PHAROS:  P07711 GTEx:  ENSG00000135047

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Cystatin-A	D, E, F	98	Homo sapiens	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P01040 (Homo sapiens) Explore P01040  Go to UniProtKB:  P01040
PHAROS:  P01040 GTEx:  ENSG00000121552

Small Molecules

Modified Residues  1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
SCH	A, B, C	L-PEPTIDE LINKING	C4 H9 N O2 S2		CYS

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.71 Å
• R-Value Free:  0.204 (Depositor), 0.200 (DCC)
• R-Value Work:  0.153 (Depositor), 0.150 (DCC)
• R-Value Observed: 0.155 (Depositor)

Space Group: P 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 35.233	α = 118.07
b = 83.948	β = 98.04
c = 83.906	γ = 98.04

Software Package:

Software Name	Purpose
MAR345dtb	data collection
AMoRE	phasing
MAIN	refinement
HKL-2000	data reduction
HKL-2000	data scaling

Structure Validation

Entry History

Deposition Data

• Released Date: 2010-12-01
Deposition Author(s): Renko, M., Turk, D.

Revision History

• Version 1.0: 2010-12-01
  Type: Initial release

• Version 1.1: 2011-07-13
  Changes: Version format compliance
• Version 1.2: 2023-11-01
  Changes: Data collection, Database references, Derived calculations, Refinement description
