3S7T

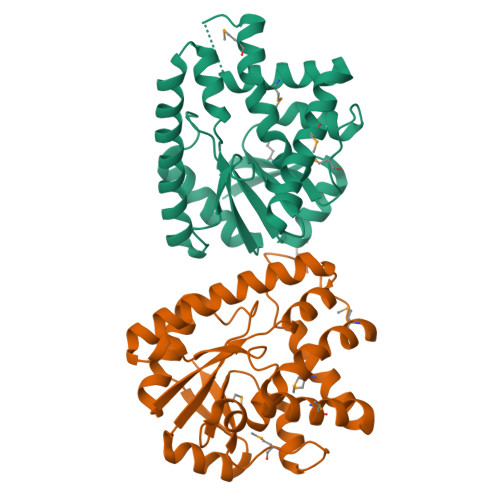

Crystal structure of SeMet B. licheniformis CDPS YvmC-Blic


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.81 Å
  • R-Value Free: 0.232
  • R-Value Work: 0.182
  • R-Value Observed: 0.187

wwPDB Validation   3D Report Full Report


This is version 1.3 of the entry. See complete history


Literature

Structural basis for nonribosomal peptide synthesis by an aminoacyl-tRNA synthetase paralog.

Bonnefond, L.Arai, T.Sakaguchi, Y.Suzuki, T.Ishitani, R.Nureki, O.

(2011) Proc Natl Acad Sci U S A 108: 3912-3917

  • DOI: https://doi.org/10.1073/pnas.1019480108
  • Primary Citation of Related Structures:
    3OQH, 3OQI, 3OQJ, 3S7T

  • PubMed Abstract:

    Cyclodipeptides are secondary metabolites biosynthesized by many bacteria and exhibit a wide array of biological activities. Recently, a new class of small proteins, named cyclodipeptide synthases (CDPS), which are unrelated to the typical nonribosomal peptide synthetases, was shown to generate several cyclodipeptides, using aminoacyl-tRNAs as substrates. The Mycobacterium tuberculosis CDPS, Rv2275, was found to generate cyclodityrosine through the formation of an aminoacyl-enzyme intermediate and to have a structure and oligomeric state similar to those of the class Ic aminoacyl-tRNA synthetases (aaRSs). However, the poor sequence conservation among CDPSs has raised questions about the architecture and catalytic mechanism of the identified homologs. Here we report the crystal structures of Bacillus licheniformis CDPS YvmC-Blic, in the apo form and complexed with substrate mimics, at 1.7-2.4-Å resolutions. The YvmC-Blic structure also exhibits similarity to the class Ic aaRSs catalytic domain. Our mutational analysis confirmed the importance of a set of residues for cyclodileucine formation among the conserved residues localized in the catalytic pocket. Our biochemical data indicated that YvmC-Blic binds tRNA and generates cyclodileucine as a monomer. We were also able to detect the presence of an aminoacyl-enzyme reaction intermediate, but not a dipeptide tRNA intermediate, whose existence was postulated for Rv2275. Instead, our results support a sequential catalytic mechanism for YvmC-Blic, with the successive attachment of two leucine residues on the enzyme via a conserved serine residue. Altogether, our findings suggest that all CDPS enzymes share a common aaRS-like architecture and a catalytic mechanism involving the formation of an enzyme-bound intermediate.


  • Organizational Affiliation

    Department of Biophysics and Biochemistry, Graduate School of Science, University of Tokyo, 2-11-16 Yayoi, Bunkyo-ku, 113-0032 Tokyo, Japan.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Putative uncharacterized protein yvmC
A, B
257Bacillus licheniformis DSM 13 = ATCC 14580Mutation(s): 0
Gene Names: BL00817BLi03566yvmC
UniProt
Find proteins for Q65EX3 (Bacillus licheniformis (strain ATCC 14580 / DSM 13 / JCM 2505 / CCUG 7422 / NBRC 12200 / NCIMB 9375 / NCTC 10341 / NRRL NRS-1264 / Gibson 46))
Go to UniProtKB:  Q65EX3
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
MSE
Query on MSE
A, B
L-PEPTIDE LINKINGC5 H11 N O2 SeMET
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.81 Å
  • R-Value Free: 0.232
  • R-Value Work: 0.182
  • R-Value Observed: 0.187
  • Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 150.172α = 90
b = 54.713β = 130.05
c = 101.556γ = 90
Software Package:
Software NamePurpose
SCALEPACKdata scaling
SOLVEphasing
PHENIXrefinement
PDB_EXTRACTdata extraction
ADSCdata collection
DENZOdata reduction

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2011-06-22
    Type: Initial release
  • Version 1.1: 2011-07-13
    Changes: Version format compliance
  • Version 1.2: 2017-11-08
    Changes: Refinement description
  • Version 1.3: 2024-10-30
    Changes: Data collection, Database references, Derived calculations, Structure summary
