3UXD

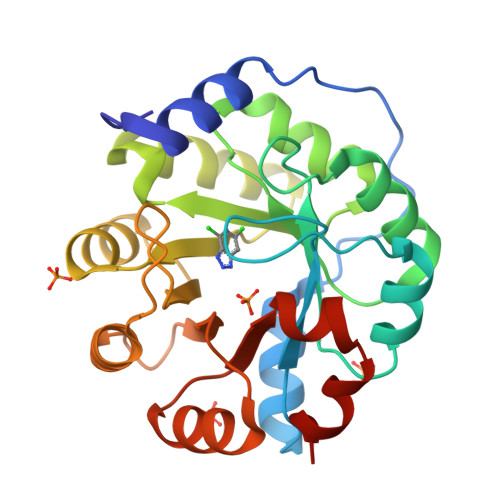

Designed protein KE59 R1 7/10H with dichlorobenzotriazole (DBT)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free: 0.233
  • R-Value Work: 0.175
  • R-Value Observed: 0.179

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.3 of the entry. See complete history


Literature

Bridging the gaps in design methodologies by evolutionary optimization of the stability and proficiency of designed Kemp eliminase KE59.

Khersonsky, O.Kiss, G.Rothlisberger, D.Dym, O.Albeck, S.Houk, K.N.Baker, D.Tawfik, D.S.

(2012) Proc Natl Acad Sci U S A 109: 10358-10363

  • DOI: https://doi.org/10.1073/pnas.1121063109
  • Primary Citation of Related Structures:
    3UXA, 3UXD, 3UY7, 3UY8, 3UYC, 3UZ5, 3UZJ

  • PubMed Abstract:

    Computational design is a test of our understanding of enzyme catalysis and a means of engineering novel, tailor-made enzymes. While the de novo computational design of catalytically efficient enzymes remains a challenge, designed enzymes may comprise unique starting points for further optimization by directed evolution. Directed evolution of two computationally designed Kemp eliminases, KE07 and KE70, led to low to moderately efficient enzymes (k(cat)/K(m) values of ≤ 5 10(4) M(-1)s(-1)). Here we describe the optimization of a third design, KE59. Although KE59 was the most catalytically efficient Kemp eliminase from this design series (by k(cat)/K(m), and by catalyzing the elimination of nonactivated benzisoxazoles), its impaired stability prevented its evolutionary optimization. To boost KE59's evolvability, stabilizing consensus mutations were included in the libraries throughout the directed evolution process. The libraries were also screened with less activated substrates. Sixteen rounds of mutation and selection led to > 2,000-fold increase in catalytic efficiency, mainly via higher k(cat) values. The best KE59 variants exhibited k(cat)/K(m) values up to 0.6 10(6) M(-1)s(-1), and k(cat)/k(uncat) values of ≤ 10(7) almost regardless of substrate reactivity. Biochemical, structural, and molecular dynamics (MD) simulation studies provided insights regarding the optimization of KE59. Overall, the directed evolution of three different designed Kemp eliminases, KE07, KE70, and KE59, demonstrates that computational designs are highly evolvable and can be optimized to high catalytic efficiencies.


  • Organizational Affiliation

    Department of Biological Chemistry, Weizmann Institute of Science, Rehovot 76100, Israel.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Kemp eliminase KE59 R1 7/10H
A, B
252Escherichia coliMutation(s): 0
EC: 4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
0CU
Query on 0CU

Download Ideal Coordinates CCD File
C [auth A],
H [auth B]
5,7-dichloro-1H-benzotriazole
C6 H3 Cl2 N3
JIEIAVACOCLACU-UHFFFAOYSA-N
PO4
Query on PO4

Download Ideal Coordinates CCD File
D [auth A]
E [auth A]
F [auth A]
G [auth A]
I [auth B]
D [auth A],
E [auth A],
F [auth A],
G [auth A],
I [auth B],
J [auth B],
K [auth B],
L [auth B]
PHOSPHATE ION
O4 P
NBIIXXVUZAFLBC-UHFFFAOYSA-K
Binding Affinity Annotations
IDSourceBinding Affinity
0CU PDBBind:  3UXD Ki: 3.93e+4 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.80 Å
  • R-Value Free: 0.233
  • R-Value Work: 0.175
  • R-Value Observed: 0.179
  • Space Group: P 31
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 62.127α = 90
b = 62.127β = 90
c = 120.128γ = 120
Software Package:
Software NamePurpose
HKL-2000data collection
PHASERphasing
REFMACrefinement
HKL-2000data reduction
SCALEPACKdata scaling

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Revision History  (Full details and data files)

  • Version 1.0: 2012-06-06
    Type: Initial release
  • Version 1.1: 2012-06-27
    Changes: Database references
  • Version 1.2: 2012-07-11
    Changes: Database references
  • Version 1.3: 2023-09-13
    Changes: Data collection, Database references, Derived calculations, Refinement description
