4J7C

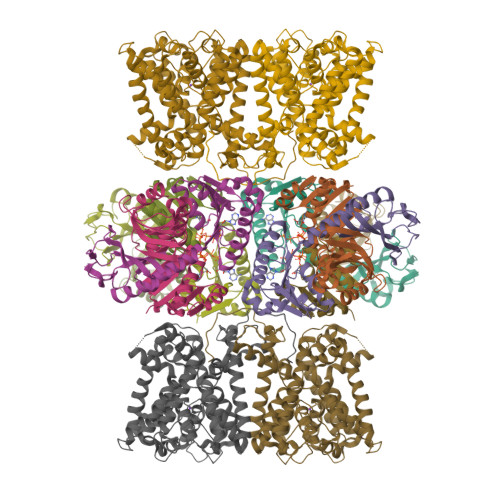

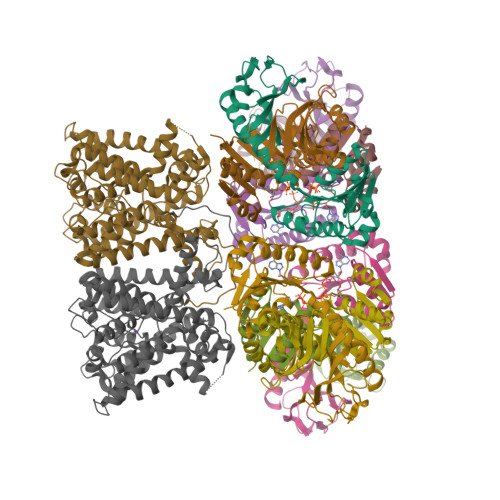

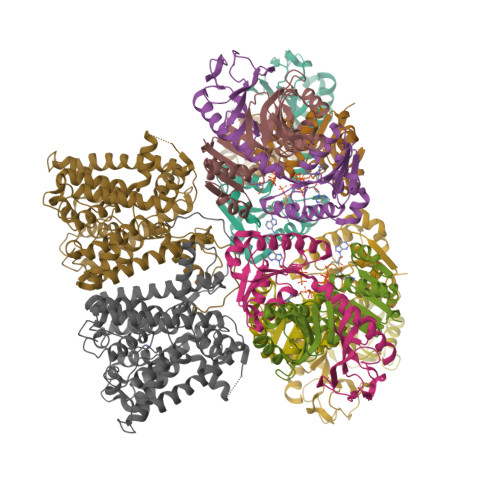

KtrAB potassium transporter from Bacillus subtilis


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.50 Å
  • R-Value Free: 0.273
  • R-Value Work: 0.258
  • R-Value Observed: 0.259

Starting Models: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

The structure of the KtrAB potassium transporter

Vieira-Pires, R.S.Szollosi, A.Morais-Cabral, J.H.

(2013) Nature 496: 323-328

  • DOI: https://doi.org/10.1038/nature12055
  • Primary Citation of Related Structures:
    4J7C, 4J90, 4J91

  • PubMed Abstract:

    In bacteria, archaea, fungi and plants the Trk, Ktr and HKT ion transporters are key components of osmotic regulation, pH homeostasis and resistance to drought and high salinity. These ion transporters are functionally diverse: they can function as Na(+) or K(+) channels and possibly as cation/K(+) symporters. They are closely related to potassium channels both at the level of the membrane protein and at the level of the cytosolic regulatory domains. Here we describe the crystal structure of a Ktr K(+) transporter, the KtrAB complex from Bacillus subtilis. The structure shows the dimeric membrane protein KtrB assembled with a cytosolic octameric KtrA ring bound to ATP, an activating ligand. A comparison between the structure of KtrAB-ATP and the structures of the isolated full-length KtrA protein with ATP or ADP reveals a ligand-dependent conformational change in the octameric ring, raising new ideas about the mechanism of activation in these transporters.


  • Organizational Affiliation

    Instituto de Biologia Molecular e Celular, Universidade do Porto, Rua do Campo Alegre 823, Porto 4150-180, Portugal.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Ktr system potassium uptake protein A
A, B, C, D, E
A, B, C, D, E, F, G, H
222Bacillus subtilis subsp. subtilis str. 168Mutation(s): 1
Gene Names: ktrA
Membrane Entity: Yes
UniProt
Find proteins for O32080 (Bacillus subtilis (strain 168))
Explore O32080
Go to UniProtKB:  O32080
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO32080
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Ktr system potassium uptake protein B
I, J, K, L
465Bacillus subtilis subsp. subtilis str. 168Mutation(s): 0
Gene Names: ktrB
Membrane Entity: Yes
UniProt
Find proteins for O32081 (Bacillus subtilis (strain 168))
Explore O32081
Go to UniProtKB:  O32081
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO32081
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
ATP
Query on ATP

Download Ideal Coordinates CCD File
M [auth A]
N [auth B]
O [auth C]
P [auth D]
Q [auth E]
M [auth A],
N [auth B],
O [auth C],
P [auth D],
Q [auth E],
R [auth F],
S [auth G],
T [auth H]
ADENOSINE-5'-TRIPHOSPHATE
C10 H16 N5 O13 P3
ZKHQWZAMYRWXGA-KQYNXXCUSA-N
K
Query on K

Download Ideal Coordinates CCD File
U [auth I],
V [auth J],
W [auth K],
X [auth L]
POTASSIUM ION
K
NPYPAHLBTDXSSS-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.50 Å
  • R-Value Free: 0.273
  • R-Value Work: 0.258
  • R-Value Observed: 0.259
  • Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 146.52α = 90
b = 140.19β = 105.69
c = 153.93γ = 90
Software Package:
Software NamePurpose
SCALAdata scaling
PHASERphasing
DMphasing
REFMACrefinement
PDB_EXTRACTdata extraction
DNAdata collection
XSCALEdata scaling

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2013-04-17
    Type: Initial release
  • Version 1.1: 2013-08-07
    Changes: Database references
  • Version 1.2: 2023-11-08
    Changes: Data collection, Database references, Derived calculations, Refinement description
