5OBM

Crystal structure of Gentamicin bound to the yeast 80S ribosome

• PDB DOI: https://doi.org/10.2210/pdb5OBM/pdb
• NAKB: 5OBM

• Classification: RIBOSOME
• Organism(s): Saccharomyces cerevisiae S288C
• Mutation(s): No


• Deposited: 2017-06-28 Released: 2017-12-13
• Deposition Author(s): Prokhorova, I., Djumagulov, M., Urzhumtsev, A., Yusupov, M., Yusupova, G.

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 3.40 Å
• R-Value Free: 0.238
• R-Value Work: 0.189
• R-Value Observed: 0.190

Literature

Aminoglycoside interactions and impacts on the eukaryotic ribosome.

Prokhorova, I., Altman, R.B., Djumagulov, M., Shrestha, J.P., Urzhumtsev, A., Ferguson, A., Chang, C.T., Yusupov, M., Blanchard, S.C., Yusupova, G.

(2017) Proc Natl Acad Sci U S A 114: E10899-E10908

• PubMed: 29208708
• DOI: https://doi.org/10.1073/pnas.1715501114
• Primary Citation of Related Structures:
  5NDG, 5NDJ, 5NDK, 5NDV, 5NDW, 5OBM


• PubMed Abstract:


  Aminoglycosides are chemically diverse, broad-spectrum antibiotics that target functional centers within the bacterial ribosome to impact all four principle stages (initiation, elongation, termination, and recycling) of the translation mechanism. The propensity of aminoglycosides to induce miscoding errors that suppress the termination of protein synthesis supports their potential as therapeutic interventions in human diseases associated with premature termination codons (PTCs). However, the sites of interaction of aminoglycosides with the eukaryotic ribosome and their modes of action in eukaryotic translation remain largely unexplored. Here, we use the combination of X-ray crystallography and single-molecule FRET analysis to reveal the interactions of distinct classes of aminoglycosides with the 80S eukaryotic ribosome. Crystal structures of the 80S ribosome in complex with paromomycin, geneticin (G418), gentamicin, and TC007, solved at 3.3- to 3.7-Å resolution, reveal multiple aminoglycoside-binding sites within the large and small subunits, wherein the 6'-hydroxyl substituent in ring I serves as a key determinant of binding to the canonical eukaryotic ribosomal decoding center. Multivalent binding interactions with the human ribosome are also evidenced through their capacity to affect large-scale conformational dynamics within the pretranslocation complex that contribute to multiple aspects of the translation mechanism. The distinct impacts of the aminoglycosides examined suggest that their chemical composition and distinct modes of interaction with the ribosome influence PTC read-through efficiency. These findings provide structural and functional insights into aminoglycoside-induced impacts on the eukaryotic ribosome and implicate pleiotropic mechanisms of action beyond decoding.

---

Organizational Affiliation:

Department of Integrated Structural Biology, Institut de Génétique et de Biologie Moléculaire et Cellulaire, INSERM U964, CNRS UMR7104, Université de Strasbourg, 67404 Illkirch, France.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 75-mer - AA1AB1AC1AD1AE1AF1AG1AH1AI1AJ1AK1AL1AM1AN1AO1AP1AQ1AR1AS1AT1AU1AV1AW1AX1AY1AZ1Aa1Ab1Ac1Ad1Ae1Af1Ag1Ah1Ai1Aj1Ak1Al1Am1An1Ao1Ap1Aq1Ar1As1At1Au1Av1Aw1Ax1Ay1Az1BA1BB1BC1BD1BE1BF1BG1BH1BI1BJ1BK1BL1BM1BN1BO1BP1BQ1BR1BS1BT1BU1BV1BW1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 75-mer - AA2AB2AC1AD1AE1AF1AG1AH1AI1AJ1AK1AL1AM1AN1AO1AP1AQ1AR1AS1AT1AU1AV1AW1AX1AY1AZ1Aa1Ab1Ac1Ad1Ae1Af1Ag1Ah1Ai1Aj1Ak1Al1Am1An1Ao1Ap1Aq1Ar1As1At1Au1Av1Aw1Ax1Ay1Az1BA1BB1BC1BD1BE1BF1BG1BH1BI1BJ1BK1BL1BM1BN1BO1BP1BQ1BR1BS1BT1BU1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: equilibrium centrifugation

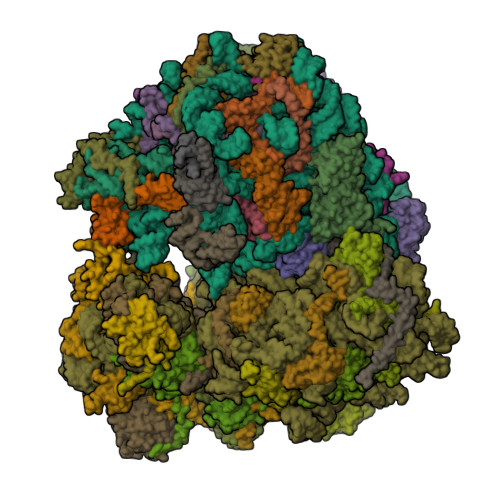

Biological Assembly 2

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 78-mer - AA1AB1AC1AD1AE1AF1AG1AH1AI1AJ1AK1AL1AM1AN1AO1AP1AQ1AR1AS1AT1AU1AV1AW1AX1AY1AZ1Aa1Ab1Ac1Ad1Ae1Af1Ag1Ah1Ai1Aj1Ak1Al1Am1An1Ao1Ap1Aq1Ar1As1At1Au1Av1Aw1Ax1Ay1Az1BA1BB1BC1BD1BE1BF1BG1BH1BI1BJ1BK1BL1BM1BN1BO1BP1BQ1BR1BS1BT1BU1BV1BW1BX1BY1BZ1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 78-mer - AA2AB2AC1AD1AE1AF1AG1AH1AI1AJ1AK1AL1AM1AN1AO1AP1AQ1AR1AS1AT1AU1AV1AW1AX1AY1AZ1Aa1Ab1Ac1Ad1Ae1Af1Ag1Ah1Ai1Aj1Ak1Al1Am1An1Ao1Ap1Aq1Ar1As1At1Au1Av1Aw1Ax1Ay1Az1BA1BB1BC1BD1BE1BF1BG1BH1BI1BJ1BK1BL1BM1BN1BO1BP1BQ1BR1BS1BT1BU1BV1BW1BX1

Biological assembly 2 assigned by authors.

Macromolecule Content

• Total Structure Weight: 6,274.9 kDa
• Atom Count: 404,238
• Modelled Residue Count: 33,106
• Deposited Residue Count: 34,616
• Unique protein chains: 79
• Unique nucleic acid chains: 4

Macromolecules

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L2-A	D [auth L2], EC [auth l2]	252	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0CX45 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX45  Go to UniProtKB:  P0CX45

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L3	E [auth L3], FC [auth l3]	386	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P14126 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P14126  Go to UniProtKB:  P14126

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L4-A	F [auth L4], GC [auth l4]	361	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P10664 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P10664  Go to UniProtKB:  P10664

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L5	G [auth L5], HC [auth l5]	296	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P26321 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P26321  Go to UniProtKB:  P26321

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L6-A	H [auth L6], IC [auth l6]	176	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for Q02326 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore Q02326  Go to UniProtKB:  Q02326

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L7-A	I [auth L7], JC [auth l7]	223	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P05737 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05737  Go to UniProtKB:  P05737

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L8-A	J [auth L8], KC [auth l8]	233	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P17076 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P17076  Go to UniProtKB:  P17076

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L9-A	K [auth L9], LC [auth l9]	191	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P05738 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05738  Go to UniProtKB:  P05738

Entity ID: 12
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L10	L [auth M0], MC [auth m0]	221	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P41805 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P41805  Go to UniProtKB:  P41805

Entity ID: 13
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L11-B	M [auth M1], NC [auth m1]	169	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for Q3E757 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore Q3E757  Go to UniProtKB:  Q3E757

Entity ID: 14
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L13-A	N [auth M3], PC [auth m3]	194	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for Q12690 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore Q12690  Go to UniProtKB:  Q12690

Entity ID: 15
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L14-A	O [auth M4], QC [auth m4]	137	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P36105 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P36105  Go to UniProtKB:  P36105

Entity ID: 16
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L15-A	P [auth M5], RC [auth m5]	203	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P05748 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05748  Go to UniProtKB:  P05748

Entity ID: 17
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L16-A	Q [auth M6], SC [auth m6]	197	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P26784 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P26784  Go to UniProtKB:  P26784

Entity ID: 18
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L17-A	R [auth M7], TC [auth m7]	184	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P05740 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05740  Go to UniProtKB:  P05740

Entity ID: 19
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L18-A	S [auth M8], UC [auth m8]	185	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0CX49 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX49  Go to UniProtKB:  P0CX49

Entity ID: 20
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L19-A	T [auth M9], VC [auth m9]	188	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0CX82 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX82  Go to UniProtKB:  P0CX82

Entity ID: 21
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L20-A	U [auth N0], WC [auth n0]	172	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0CX23 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX23  Go to UniProtKB:  P0CX23

Entity ID: 22
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L21-A	V [auth N1], XC [auth n1]	159	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for Q02753 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore Q02753  Go to UniProtKB:  Q02753

Entity ID: 23
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L22-A	W [auth N2], YC [auth n2]	100	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P05749 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05749  Go to UniProtKB:  P05749

Entity ID: 24
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L23-A	X [auth N3], ZC [auth n3]	136	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0CX41 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX41  Go to UniProtKB:  P0CX41

Entity ID: 25
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L24-A	Y [auth N4]	155	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P04449 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P04449  Go to UniProtKB:  P04449

Entity ID: 26
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L25	BD [auth n5], Z [auth N5]	121	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P04456 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P04456  Go to UniProtKB:  P04456

Entity ID: 27
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L26-A	AA [auth N6], CD [auth n6]	126	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P05743 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05743  Go to UniProtKB:  P05743

Entity ID: 28
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L27-A	BA [auth N7], DD [auth n7]	135	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0C2H6 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0C2H6  Go to UniProtKB:  P0C2H6

Entity ID: 29
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L28	CA [auth N8], ED [auth n8]	148	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P02406 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P02406  Go to UniProtKB:  P02406

Entity ID: 30
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L29	DA [auth N9], FD [auth n9]	58	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P05747 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05747  Go to UniProtKB:  P05747

Entity ID: 31
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L30	EA [auth O0], GD [auth o0]	100	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P14120 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P14120  Go to UniProtKB:  P14120

Entity ID: 32
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L31-A	FA [auth O1], HD [auth o1]	109	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0C2H8 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0C2H8  Go to UniProtKB:  P0C2H8

Entity ID: 33
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L32	GA [auth O2], ID [auth o2]	127	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P38061 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P38061  Go to UniProtKB:  P38061

Entity ID: 34
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L33-A	HA [auth O3], JD [auth o3]	106	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P05744 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05744  Go to UniProtKB:  P05744

Entity ID: 35
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L34-A	IA [auth O4], KD [auth o4]	112	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P87262 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P87262  Go to UniProtKB:  P87262

Entity ID: 36
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L35-A	JA [auth O5], LD [auth o5]	119	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0CX84 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX84  Go to UniProtKB:  P0CX84

Entity ID: 37
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L36-A	KA [auth O6], MD [auth o6]	99	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P05745 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05745  Go to UniProtKB:  P05745

Entity ID: 38
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L37-A	LA [auth O7], ND [auth o7]	87	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P49166 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P49166  Go to UniProtKB:  P49166

Entity ID: 39
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L38	MA [auth O8], OD [auth o8]	77	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P49167 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P49167  Go to UniProtKB:  P49167

Entity ID: 40
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L39	NA [auth O9], PD [auth o9]	50	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P04650 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P04650  Go to UniProtKB:  P04650

Entity ID: 41
Molecule	Chains	Sequence Length	Organism	Details	Image
Ubiquitin-60S ribosomal protein L40	OA [auth Q0], SD [auth q0]	52	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0CH08 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CH08  Go to UniProtKB:  P0CH08

Entity ID: 42
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L41-A	PA [auth Q1], TD [auth q1]	25	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0CX86 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX86  Go to UniProtKB:  P0CX86

Entity ID: 43
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L42-A	QA [auth Q2], UD [auth q2]	105	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0CX27 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX27  Go to UniProtKB:  P0CX27

Entity ID: 44
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L43-A	RA [auth Q3], VD [auth q3]	91	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0CX25 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX25  Go to UniProtKB:  P0CX25

Entity ID: 46
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S0-A	TA [auth S0], XD [auth s0]	206	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P32905 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P32905  Go to UniProtKB:  P32905

Entity ID: 47
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S1-A	UA [auth S1], YD [auth s1]	216	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P33442 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P33442  Go to UniProtKB:  P33442

Entity ID: 48
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S2	VA [auth S2], ZD [auth s2]	217	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P25443 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P25443  Go to UniProtKB:  P25443

Entity ID: 49
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S3	AE [auth s3], WA [auth S3]	223	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P05750 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05750  Go to UniProtKB:  P05750

Entity ID: 50
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S4-A	BE [auth s4], XA [auth S4]	260	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0CX35 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX35  Go to UniProtKB:  P0CX35

Entity ID: 51
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S5	CE [auth s5], YA [auth S5]	206	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P26783 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P26783  Go to UniProtKB:  P26783

Entity ID: 52
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S6-A	DE [auth s6], ZA [auth S6]	236	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0CX37 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX37  Go to UniProtKB:  P0CX37

Entity ID: 53
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S7-A	AB [auth S7], EE [auth s7]	186	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P26786 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P26786  Go to UniProtKB:  P26786

Entity ID: 54
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S8-A	BB [auth S8], FE [auth s8]	200	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0CX39 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX39  Go to UniProtKB:  P0CX39

Entity ID: 55
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S9-A	CB [auth S9], GE [auth s9]	185	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for O13516 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore O13516  Go to UniProtKB:  O13516

Entity ID: 56
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S10-A	DB [auth C0], HE [auth c0]	105	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for Q08745 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore Q08745  Go to UniProtKB:  Q08745

Entity ID: 57
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S11-A	EB [auth C1], IE [auth c1]	156	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0CX47 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX47  Go to UniProtKB:  P0CX47

Entity ID: 58
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S12	FB [auth C2], JE [auth c2]	143	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P48589 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P48589  Go to UniProtKB:  P48589

Entity ID: 59
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S13	GB [auth C3], KE [auth c3]	150	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P05756 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05756  Go to UniProtKB:  P05756

Entity ID: 60
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S14-B	HB [auth C4], LE [auth c4]	128	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P39516 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P39516  Go to UniProtKB:  P39516

Entity ID: 61
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S15	IB [auth C5], ME [auth c5]	141	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for Q01855 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore Q01855  Go to UniProtKB:  Q01855

Entity ID: 62
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S16-A	JB [auth C6], NE [auth c6]	142	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0CX51 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX51  Go to UniProtKB:  P0CX51

Entity ID: 63
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S17-A	KB [auth C7], OE [auth c7]	136	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P02407 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P02407  Go to UniProtKB:  P02407

Entity ID: 64
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S18-A	LB [auth C8], PE [auth c8]	145	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0CX55 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX55  Go to UniProtKB:  P0CX55

Entity ID: 65
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S19-A	MB [auth C9], QE [auth c9]	143	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P07280 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P07280  Go to UniProtKB:  P07280

Entity ID: 66
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S20	NB [auth D0], RE [auth d0]	110	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P38701 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P38701  Go to UniProtKB:  P38701

Entity ID: 67
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S21-A	OB [auth D1], SE [auth d1]	87	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0C0V8 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0C0V8  Go to UniProtKB:  P0C0V8

Entity ID: 68
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S22-A	PB [auth D2], TE [auth d2]	129	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0C0W1 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0C0W1  Go to UniProtKB:  P0C0W1

Entity ID: 69
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S23-A	QB [auth D3], UE [auth d3]	144	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0CX29 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX29  Go to UniProtKB:  P0CX29

Entity ID: 70
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S24-A	RB [auth D4], VE [auth d4]	134	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0CX31 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX31  Go to UniProtKB:  P0CX31

Entity ID: 71
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S25-A	SB [auth D5], WE [auth d5]	70	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for Q3E792 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore Q3E792  Go to UniProtKB:  Q3E792

Entity ID: 72
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S26-B	TB [auth D6], XE [auth d6]	97	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P39939 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P39939  Go to UniProtKB:  P39939

Entity ID: 73
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S27-A	UB [auth D7], YE [auth d7]	81	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P35997 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P35997  Go to UniProtKB:  P35997

Entity ID: 74
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S28-A	VB [auth D8], ZE [auth d8]	63	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for Q3E7X9 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore Q3E7X9  Go to UniProtKB:  Q3E7X9

Entity ID: 75
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S29-A	AF [auth d9], WB [auth D9]	53	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P41057 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P41057  Go to UniProtKB:  P41057

Entity ID: 76
Molecule	Chains	Sequence Length	Organism	Details	Image
40S ribosomal protein S30-A	BF [auth e0], XB [auth E0]	62	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P0CX33 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P0CX33  Go to UniProtKB:  P0CX33

Entity ID: 77
Molecule	Chains	Sequence Length	Organism	Details	Image
Ubiquitin-40S ribosomal protein S31	CF [auth e1], YB [auth E1]	72	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P05759 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05759  Go to UniProtKB:  P05759

Entity ID: 78
Molecule	Chains	Sequence Length	Organism	Details	Image
Guanine nucleotide-binding protein subunit beta-like protein	DF [auth sR], ZB [auth SR]	318	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P38011 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P38011  Go to UniProtKB:  P38011

Entity ID: 79
Molecule	Chains	Sequence Length	Organism	Details	Image
Suppressor protein STM1	AC [auth SM], EF [auth sM]	272	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P39015 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P39015  Go to UniProtKB:  P39015

Entity ID: 80
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L12	OC [auth m2]	165	Saccharomyces cerevisiae S288C	Mutation(s): 0

Entity ID: 81
Molecule	Chains	Sequence Length	Organism	Details	Image
60S ribosomal protein L24-A	AD [auth n4]	135	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P04449 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P04449  Go to UniProtKB:  P04449

Entity ID: 82
Molecule	Chains	Sequence Length	Organism	Details	Image
60S acidic ribosomal protein P0	QD [auth p0]	312	Saccharomyces cerevisiae S288C	Mutation(s): 0
UniProt
Find proteins for P05317 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P05317  Go to UniProtKB:  P05317

Entity ID: 83
Molecule	Chains	Sequence Length	Organism	Details	Image
Ribosomal protein P1 alpha	RD [auth p1]	47	Saccharomyces cerevisiae S288C	Mutation(s): 0

Entity ID: 1
Molecule	Chains	Length	Organism	Image
25S ribosomal RNA	A [auth 1], BC [auth 5]	3,396	Saccharomyces cerevisiae S288C

Entity ID: 2
Molecule	Chains	Length	Organism	Image
5S Ribosomal RNA	B [auth 3], CC [auth 7]	121	Saccharomyces cerevisiae S288C

Entity ID: 3
Molecule	Chains	Length	Organism	Image
5.8S ribosomal RNA	C [auth 4], DC [auth 8]	158	Saccharomyces cerevisiae S288C

Entity ID: 45
Molecule	Chains	Length	Organism	Image
18S ribosomal RNA	SA [auth 2], WD [auth 6]	1,800	Saccharomyces cerevisiae S288C

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
LLL	ACA [auth 1], AIC [auth 6], ARB [auth 5], BCA [auth 1], BIC [auth 6], BRB [auth 5], CCA [auth 1], CEA [auth 4], CIC [auth 6], CRB [auth 5], DCA [auth 1], DIC [auth 6], DQB [auth 5], DRB [auth 5], ECA [auth 1], EDA [auth 3], EIC [auth 6], EQB [auth 5], ERB [auth 5], FCA [auth 1], FIC [auth 6], FQB [auth 5], GCA [auth 1], GIC [auth 6], GQB [auth 5], GTB [auth 8], HCA [auth 1], HIC [auth 6], HQB [auth 5], HTB [auth 8], ICA [auth 1], IIC [auth 6], IQB [auth 5], JCA [auth 1], JIC [auth 6], JQB [auth 5], JSB [auth 7], KCA [auth 1], KIC [auth 6], KQB [auth 5], KSB [auth 7], LEA [auth L3], LIC [auth 6], LQB [auth 5], LSB [auth 7], MIC [auth 6], MQB [auth 5], NQB [auth 5], OMA [auth 2], OQB [auth 5], PMA [auth 2], PQB [auth 5], QMA [auth 2], QQB [auth 5], RQB [auth 5], SQB [auth 5], TQB [auth 5], UQB [auth 5], VBA [auth 1], VQB [auth 5], WBA [auth 1], WQB [auth 5], XBA [auth 1], XQB [auth 5], YBA [auth 1], YQB [auth 5], YTB [auth l3], ZBA [auth 1], ZQB [auth 5]	(2R,3R,4R,5R)-2-((1S,2S,3R,4S,6R)-4,6-DIAMINO-3-((2R,3R,6S)-3-AMINO-6-(AMINOMETHYL)-TETRAHYDRO-2H-PYRAN-2-YLOXY)-2-HYDR OXYCYCLOHEXYLOXY)-5-METHYL-4-(METHYLAMINO)-TETRAHYDRO-2H-PYRAN-3,5-DIOL C19 H39 N5 O7 VEGXETMJINRLTH-BOZYPMBZSA-N
ZN	BHA [auth Q3], DNA [auth D6], DXB [auth o4], ENA [auth D7], FNA [auth D9], GNA [auth E1], GXB [auth o7], HXB [auth q0], LGA [auth O4], LXB [auth q2], QGA [auth O7], QJC [auth d6], TXB [auth q3], UGA [auth Q0], UJC [auth d7], WGA [auth Q2], WJC [auth d9], YJC [auth e1]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N
MG	AAA [auth 1], AAB [auth 5], AAC [auth 6], ABA [auth 1], ABB [auth 5], ABC [auth 6], ACB [auth 5], ACC [auth 6], ADA [auth 3], ADB [auth 5], ADC [auth 6], AEA [auth 4], AEB [auth 5], AEC [auth 6], AFA [auth M3], AFB [auth 5], AFC [auth 6], AG [auth 1], AGA [auth N3], AGB [auth 5], AGC [auth 6], AH [auth 1], AHA [auth Q2], AHB [auth 5], AHC [auth 6], AI [auth 1], AIA [auth 2], AIB [auth 5], AJ [auth 1], AJA [auth 2], AJB [auth 5], AJC [auth c3], AK [auth 1], AKA [auth 2], AKB [auth 5], AL [auth 1], ALA [auth 2], ALB [auth 5], AM [auth 1], AMA [auth 2], AMB [auth 5], AN [auth 1], ANA [auth D3], ANB [auth 5], AO [auth 1], AOA [auth 5], AOB [auth 5], AP [auth 1], APA [auth 5], APB [auth 5], AQ [auth 1], AQA [auth 5], AQB [auth 5], AR [auth 1], ARA [auth 5], AS [auth 1], ASA [auth 5], ASB [auth 7], AT [auth 1], ATA [auth 5], ATB [auth 8], AU [auth 1], AUA [auth 5], AUB [auth l4], AV [auth 1], AVA [auth 5], AVB [auth m3], AW [auth 1], AWA [auth 5], AWB [auth m8], AX [auth 1], AXA [auth 5], AXB [auth o2], AY [auth 1], AYA [auth 5], AYB [auth 6], AZ [auth 1], AZA [auth 5], AZB [auth 6], BAA [auth 1], BAB [auth 5], BAC [auth 6], BBA [auth 1], BBB [auth 5], BBC [auth 6], BCB [auth 5], BCC [auth 6], BDA [auth 3], BDB [auth 5], BDC [auth 6], BEA [auth 4], BEB [auth 5], BEC [auth 6], BFA [auth M3], BFB [auth 5], BFC [auth 6], BG [auth 1], BGA [auth N4], BGB [auth 5], BGC [auth 6], BH [auth 1], BHB [auth 5], BHC [auth 6], BI [auth 1], BIA [auth 2], BIB [auth 5], BJ [auth 1], BJA [auth 2], BJB [auth 5], BJC [auth c3], BK [auth 1], BKA [auth 2], BKB [auth 5], BL [auth 1], BLA [auth 2], BLB [auth 5], BM [auth 1], BMA [auth 2], BMB [auth 5], BN [auth 1], BNA [auth D3], BNB [auth 5], BO [auth 1], BOA [auth 5], BOB [auth 5], BP [auth 1], BPA [auth 5], BPB [auth 5], BQ [auth 1], BQA [auth 5], BQB [auth 5], BR [auth 1], BRA [auth 5], BS [auth 1], BSA [auth 5], BSB [auth 7], BT [auth 1], BTA [auth 5], BTB [auth 8], BU [auth 1], BUA [auth 5], BUB [auth l5], BV [auth 1], BVA [auth 5], BVB [auth m4], BW [auth 1], BWA [auth 5], BWB [auth m8], BX [auth 1], BXA [auth 5], BXB [auth o3], BY [auth 1], BYA [auth 5], BYB [auth 6], BZ [auth 1], BZA [auth 5], BZB [auth 6], CAA [auth 1], CAB [auth 5], CAC [auth 6], CBA [auth 1], CBB [auth 5], CBC [auth 6], CCB [auth 5], CCC [auth 6], CDA [auth 3], CDB [auth 5], CDC [auth 6], CEB [auth 5], CEC [auth 6], CFA [auth M3], CFB [auth 5], CFC [auth 6], CG [auth 1], CGA [auth N5], CGB [auth 5], CGC [auth 6], CH [auth 1], CHA [auth 2], CHB [auth 5], CHC [auth 6], CI [auth 1], CIA [auth 2], CIB [auth 5], CJ [auth 1], CJA [auth 2], CJB [auth 5], CJC [auth c3], CK [auth 1], CKA [auth 2], CKB [auth 5], CL [auth 1], CLA [auth 2], CLB [auth 5], CM [auth 1], CMA [auth 2], CMB [auth 5], CN [auth 1], CNA [auth D3], CNB [auth 5], CO [auth 1], COA [auth 5], COB [auth 5], CP [auth 1], CPA [auth 5], CPB [auth 5], CQ [auth 1], CQA [auth 5], CQB [auth 5], CR [auth 1], CRA [auth 5], CS [auth 1], CSA [auth 5], CSB [auth 7], CT [auth 1], CTA [auth 5], CTB [auth 8], CU [auth 1], CUA [auth 5], CUB [auth l5], CV [auth 1], CVA [auth 5], CVB [auth m4], CW [auth 1], CWA [auth 5], CWB [auth m8], CX [auth 1], CXA [auth 5], CXB [auth o3], CY [auth 1], CYA [auth 5], CYB [auth 6], CZ [auth 1], CZA [auth 5], CZB [auth 6], DAA [auth 1], DAB [auth 5], DAC [auth 6], DBA [auth 1], DBB [auth 5], DBC [auth 6], DCB [auth 5], DCC [auth 6], DDA [auth 3], DDB [auth 5], DDC [auth 6], DEA [auth L2], DEB [auth 5], DEC [auth 6], DFA [auth M3], DFB [auth 5], DFC [auth 6], DG [auth 1], DGA [auth N8], DGB [auth 5], DGC [auth 6], DH [auth 1], DHA [auth 2], DHB [auth 5], DHC [auth 6], DI [auth 1], DIA [auth 2], DIB [auth 5], DJ [auth 1], DJA [auth 2], DJB [auth 5], DJC [auth c4], DK [auth 1], DKA [auth 2], DKB [auth 5], DL [auth 1], DLA [auth 2], DLB [auth 5], DM [auth 1], DMA [auth 2], DMB [auth 5], DN [auth 1], DNB [auth 5], DO [auth 1], DOA [auth 5], DOB [auth 5], DP [auth 1], DPA [auth 5], DPB [auth 5], DQ [auth 1], DQA [auth 5], DR [auth 1], DRA [auth 5], DS [auth 1], DSA [auth 5], DSB [auth 7], DT [auth 1], DTA [auth 5], DTB [auth 8], DU [auth 1], DUA [auth 5], DUB [auth l5], DV [auth 1], DVA [auth 5], DVB [auth m4], DW [auth 1], DWA [auth 5], DWB [auth m9], DX [auth 1], DXA [auth 5], DY [auth 1], DYA [auth 5], DYB [auth 6], DZ [auth 1], DZA [auth 5], DZB [auth 6], EAA [auth 1], EAB [auth 5], EAC [auth 6], EBA [auth 1], EBB [auth 5], EBC [auth 6], ECB [auth 5], ECC [auth 6], EDB [auth 5], EDC [auth 6], EEA [auth L2], EEB [auth 5], EEC [auth 6], EFA [auth M3], EFB [auth 5], EFC [auth 6], EG [auth 1], EGA [auth N8], EGB [auth 5], EGC [auth 6], EH [auth 1], EHA [auth 2], EHB [auth 5], EHC [auth 6], EI [auth 1], EIA [auth 2], EIB [auth 5], EJ [auth 1], EJA [auth 2], EJB [auth 5], EJC [auth c8], EK [auth 1], EKA [auth 2], EKB [auth 5], EL [auth 1], ELA [auth 2], ELB [auth 5], EM [auth 1], EMA [auth 2], EMB [auth 5], EN [auth 1], ENB [auth 5], EO [auth 1], EOA [auth 5], EOB [auth 5], EP [auth 1], EPA [auth 5], EPB [auth 5], EQ [auth 1], EQA [auth 5], ER [auth 1], ERA [auth 5], ES [auth 1], ESA [auth 5], ESB [auth 7], ET [auth 1], ETA [auth 5], ETB [auth 8], EU [auth 1], EUA [auth 5], EUB [auth l5], EV [auth 1], EVA [auth 5], EVB [auth m4], EW [auth 1], EWA [auth 5], EWB [auth m9], EX [auth 1], EXA [auth 5], EXB [auth o4], EY [auth 1], EYA [auth 5], EYB [auth 6], EZ [auth 1], EZA [auth 5], EZB [auth 6], FAA [auth 1], FAB [auth 5], FAC [auth 6], FBA [auth 1], FBB [auth 5], FBC [auth 6], FCB [auth 5], FCC [auth 6], FDA [auth 4], FDB [auth 5], FDC [auth 6], FEA [auth L2], FEB [auth 5], FEC [auth 6], FF [auth 1], FFA [auth M5], FFB [auth 5], FFC [auth 6], FG [auth 1], FGA [auth N8], FGB [auth 5], FGC [auth 6], FH [auth 1], FHA [auth 2], FHB [auth 5], FHC [auth 6], FI [auth 1], FIA [auth 2], FIB [auth 5], FJ [auth 1], FJA [auth 2], FJB [auth 5], FJC [auth c8], FK [auth 1], FKA [auth 2], FKB [auth 5], FL [auth 1], FLA [auth 2], FLB [auth 5], FM [auth 1], FMA [auth 2], FMB [auth 5], FN [auth 1], FNB [auth 5], FO [auth 1], FOA [auth 5], FOB [auth 5], FP [auth 1], FPA [auth 5], FPB [auth 5], FQ [auth 1], FQA [auth 5], FR [auth 1], FRA [auth 5], FRB [auth 7], FS [auth 1], FSA [auth 5], FSB [auth 7], FT [auth 1], FTA [auth 5], FTB [auth 8], FU [auth 1], FUA [auth 5], FUB [auth l5], FV [auth 1], FVA [auth 5], FVB [auth m4], FW [auth 1], FWA [auth 5], FWB [auth n0], FX [auth 1], FXA [auth 5], FXB [auth o4], FY [auth 1], FYA [auth 5], FYB [auth 6], FZ [auth 1], FZA [auth 5], FZB [auth 6], GAA [auth 1], GAB [auth 5], GAC [auth 6], GBA [auth 1], GBB [auth 5], GBC [auth 6], GCB [auth 5], GCC [auth 6], GDA [auth 4], GDB [auth 5], GDC [auth 6], GEA [auth L2], GEB [auth 5], GEC [auth 6], GF [auth 1], GFA [auth M5], GFB [auth 5], GFC [auth 6], GG [auth 1], GGA [auth O2], GGB [auth 5], GGC [auth 6], GH [auth 1], GHA [auth 2], GHB [auth 5], GHC [auth 6], GI [auth 1], GIA [auth 2], GIB [auth 5], GJ [auth 1], GJA [auth 2], GJB [auth 5], GJC [auth c8], GK [auth 1], GKA [auth 2], GKB [auth 5], GL [auth 1], GLA [auth 2], GLB [auth 5], GM [auth 1], GMA [auth 2], GMB [auth 5], GN [auth 1], GNB [auth 5], GO [auth 1], GOA [auth 5], GOB [auth 5], GP [auth 1], GPA [auth 5], GPB [auth 5], GQ [auth 1], GQA [auth 5], GR [auth 1], GRA [auth 5], GRB [auth 7], GS [auth 1], GSA [auth 5], GSB [auth 7], GT [auth 1], GTA [auth 5], GU [auth 1], GUA [auth 5], GUB [auth l5], GV [auth 1], GVA [auth 5], GVB [auth m4], GW [auth 1], GWA [auth 5], GWB [auth n0], GX [auth 1], GXA [auth 5], GY [auth 1], GYA [auth 5], GYB [auth 6], GZ [auth 1], GZA [auth 5], GZB [auth 6], HAA [auth 1], HAB [auth 5], HAC [auth 6], HBA [auth 1], HBB [auth 5], HBC [auth 6], HCB [auth 5], HCC [auth 6], HDA [auth 4], HDB [auth 5], HDC [auth 6], HEA [auth L2], HEB [auth 5], HEC [auth 6], HF [auth 1], HFA [auth M5], HFB [auth 5], HFC [auth 6], HG [auth 1], HGA [auth O2], HGB [auth 5], HGC [auth 6], HH [auth 1], HHA [auth 2], HHB [auth 5], HHC [auth 6], HI [auth 1], HIA [auth 2], HIB [auth 5], HJ [auth 1], HJA [auth 2], HJB [auth 5], HJC [auth d1], HK [auth 1], HKA [auth 2], HKB [auth 5], HL [auth 1], HLA [auth 2], HLB [auth 5], HM [auth 1], HMA [auth 2], HMB [auth 5], HN [auth 1], HNA [auth 5], HNB [auth 5], HO [auth 1], HOA [auth 5], HOB [auth 5], HP [auth 1], HPA [auth 5], HPB [auth 5], HQ [auth 1], HQA [auth 5], HR [auth 1], HRA [auth 5], HRB [auth 7], HS [auth 1], HSA [auth 5], HSB [auth 7], HT [auth 1], HTA [auth 5], HU [auth 1], HUA [auth 5], HUB [auth l6], HV [auth 1], HVA [auth 5], HVB [auth m5], HW [auth 1], HWA [auth 5], HWB [auth n0], HX [auth 1], HXA [auth 5], HY [auth 1], HYA [auth 5], HYB [auth 6], HZ [auth 1], HZA [auth 5], HZB [auth 6], IAA [auth 1], IAB [auth 5], IAC [auth 6], IBA [auth 1], IBB [auth 5], IBC [auth 6], ICB [auth 5], ICC [auth 6], IDA [auth 4], IDB [auth 5], IDC [auth 6], IEA [auth L3], IEB [auth 5], IEC [auth 6], IF [auth 1], IFA [auth M5], IFB [auth 5], IFC [auth 6], IG [auth 1], IGA [auth O2], IGB [auth 5], IGC [auth 6], IH [auth 1], IHA [auth 2], IHB [auth 5], IHC [auth 6], II [auth 1], IIA [auth 2], IIB [auth 5], IJ [auth 1], IJA [auth 2], IJB [auth 5], IJC [auth d1], IK [auth 1], IKA [auth 2], IKB [auth 5], IL [auth 1], ILA [auth 2], ILB [auth 5], IM [auth 1], IMA [auth 2], IMB [auth 5], IN [auth 1], INA [auth 5], INB [auth 5], IO [auth 1], IOA [auth 5], IOB [auth 5], IP [auth 1], IPA [auth 5], IPB [auth 5], IQ [auth 1], IQA [auth 5], IR [auth 1], IRA [auth 5], IRB [auth 7], IS [auth 1], ISA [auth 5], ISB [auth 7], IT [auth 1], ITA [auth 5], ITB [auth l2], IU [auth 1], IUA [auth 5], IUB [auth l6], IV [auth 1], IVA [auth 5], IVB [auth m5], IW [auth 1], IWA [auth 5], IWB [auth n0], IX [auth 1], IXA [auth 5], IXB [auth q0], IY [auth 1], IYA [auth 5], IYB [auth 6], IZ [auth 1], IZA [auth 5], IZB [auth 6], JAA [auth 1], JAB [auth 5], JAC [auth 6], JBA [auth 1], JBB [auth 5], JBC [auth 6], JCB [auth 5], JCC [auth 6], JDA [auth 4], JDB [auth 5], JDC [auth 6], JEA [auth L3], JEB [auth 5], JEC [auth 6], JF [auth 1], JFA [auth M5], JFB [auth 5], JFC [auth 6], JG [auth 1], JGA [auth O2], JGB [auth 5], JGC [auth 6], JH [auth 1], JHA [auth 2], JHB [auth 5], JHC [auth 6], JI [auth 1], JIA [auth 2], JIB [auth 5], JJ [auth 1], JJA [auth 2], JJB [auth 5], JJC [auth d2], JK [auth 1], JKA [auth 2], JKB [auth 5], JL [auth 1], JLA [auth 2], JLB [auth 5], JM [auth 1], JMA [auth 2], JMB [auth 5], JN [auth 1], JNA [auth 5], JNB [auth 5], JO [auth 1], JOA [auth 5], JOB [auth 5], JP [auth 1], JPA [auth 5], JPB [auth 5], JQ [auth 1], JQA [auth 5], JR [auth 1], JRA [auth 5], JRB [auth 7], JS [auth 1], JSA [auth 5], JT [auth 1], JTA [auth 5], JTB [auth l2], JU [auth 1], JUA [auth 5], JUB [auth l7], JV [auth 1], JVA [auth 5], JVB [auth m5], JW [auth 1], JWA [auth 5], JWB [auth n0], JX [auth 1], JXA [auth 5], JXB [auth q1], JY [auth 1], JYA [auth 5], JYB [auth 6], JZ [auth 1], JZA [auth 5], JZB [auth 6], KAA [auth 1], KAB [auth 5], KAC [auth 6], KBA [auth 1], KBB [auth 5], KBC [auth 6], KCB [auth 5], KCC [auth 6], KDA [auth 4], KDB [auth 5], KDC [auth 6], KEA [auth L3], KEB [auth 5], KEC [auth 6], KF [auth 1], KFA [auth M6], KFB [auth 5], KFC [auth 6], KG [auth 1], KGA [auth O3], KGB [auth 5], KGC [auth 6], KH [auth 1], KHA [auth 2], KHB [auth 5], KHC [auth 6], KI [auth 1], KIA [auth 2], KIB [auth 5], KJ [auth 1], KJA [auth 2], KJB [auth 5], KJC [auth d3], KK [auth 1], KKA [auth 2], KKB [auth 5], KL [auth 1], KLA [auth 2], KLB [auth 5], KM [auth 1], KMA [auth 2], KMB [auth 5], KN [auth 1], KNA [auth 5], KNB [auth 5], KO [auth 1], KOA [auth 5], KOB [auth 5], KP [auth 1], KPA [auth 5], KPB [auth 5], KQ [auth 1], KQA [auth 5], KR [auth 1], KRA [auth 5], KRB [auth 7], KS [auth 1], KSA [auth 5], KT [auth 1], KTA [auth 5], KTB [auth l2], KU [auth 1], KUA [auth 5], KUB [auth l7], KV [auth 1], KVA [auth 5], KVB [auth m6], KW [auth 1], KWA [auth 5], KWB [auth n0], KX [auth 1], KXA [auth 5], KXB [auth q1], KY [auth 1], KYA [auth 5], KYB [auth 6], KZ [auth 1], KZA [auth 5], KZB [auth 6], LAA [auth 1], LAB [auth 5], LAC [auth 6], LBA [auth 1], LBB [auth 5], LBC [auth 6], LCA [auth 3], LCB [auth 5], LCC [auth 6], LDA [auth 4], LDB [auth 5], LDC [auth 6], LEB [auth 5], LEC [auth 6], LF [auth 1], LFA [auth M7], LFB [auth 5], LFC [auth 6], LG [auth 1], LGB [auth 5], LGC [auth 6], LH [auth 1], LHA [auth 2], LHB [auth 5], LHC [auth 6], LI [auth 1], LIA [auth 2], LIB [auth 5], LJ [auth 1], LJA [auth 2], LJB [auth 5], LJC [auth d3], LK [auth 1], LKA [auth 2], LKB [auth 5], LL [auth 1], LLA [auth 2], LLB [auth 5], LM [auth 1], LMA [auth 2], LMB [auth 5], LN [auth 1], LNA [auth 5], LNB [auth 5], LO [auth 1], LOA [auth 5], LOB [auth 5], LP [auth 1], LPA [auth 5], LPB [auth 5], LQ [auth 1], LQA [auth 5], LR [auth 1], LRA [auth 5], LRB [auth 7], LS [auth 1], LSA [auth 5], LT [auth 1], LTA [auth 5], LTB [auth l2], LU [auth 1], LUA [auth 5], LUB [auth l7], LV [auth 1], LVA [auth 5], LVB [auth m6], LW [auth 1], LWA [auth 5], LWB [auth n0], LX [auth 1], LXA [auth 5], LY [auth 1], LYA [auth 5], LYB [auth 6], LZ [auth 1], LZA [auth 5], LZB [auth 6], MAA [auth 1], MAB [auth 5], MAC [auth 6], MBA [auth 1], MBB [auth 5], MBC [auth 6], MCA [auth 3], MCB [auth 5], MCC [auth 6], MDA [auth 4], MDB [auth 5], MDC [auth 6], MEA [auth L4], MEB [auth 5], MEC [auth 6], MF [auth 1], MFA [auth M7], MFB [auth 5], MFC [auth 6], MG [auth 1], MGA [auth O4], MGB [auth 5], MGC [auth 6], MH [auth 1], MHA [auth 2], MHB [auth 5], MHC [auth 6], MI [auth 1], MIA [auth 2], MIB [auth 5], MJ [auth 1], MJA [auth 2], MJB [auth 5], MJC [auth d3], MK [auth 1], MKA [auth 2], MKB [auth 5], ML [auth 1], MLA [auth 2], MLB [auth 5], MM [auth 1], MMA [auth 2], MMB [auth 5], MN [auth 1], MNA [auth 5], MNB [auth 5], MO [auth 1], MOA [auth 5], MOB [auth 5], MP [auth 1], MPA [auth 5], MPB [auth 5], MQ [auth 1], MQA [auth 5], MR [auth 1], MRA [auth 5], MRB [auth 7], MS [auth 1], MSA [auth 5], MSB [auth 8], MT [auth 1], MTA [auth 5], MTB [auth l2], MU [auth 1], MUA [auth 5], MUB [auth l8], MV [auth 1], MVA [auth 5], MVB [auth m6], MW [auth 1], MWA [auth 5], MWB [auth n1], MX [auth 1], MXA [auth 5], MXB [auth q2], MY [auth 1], MYA [auth 5], MYB [auth 6], MZ [auth 1], MZA [auth 5], MZB [auth 6], NAA [auth 1], NAB [auth 5], NAC [auth 6], NBA [auth 1], NBB [auth 5], NBC [auth 6], NCA [auth 3], NCB [auth 5], NCC [auth 6], NDA [auth 4], NDB [auth 5], NDC [auth 6], NEA [auth L4], NEB [auth 5], NEC [auth 6], NF [auth 1], NFA [auth M7], NFB [auth 5], NFC [auth 6], NG [auth 1], NGA [auth O4], NGB [auth 5], NGC [auth 6], NH [auth 1], NHA [auth 2], NHB [auth 5], NHC [auth 6], NI [auth 1], NIA [auth 2], NIB [auth 5], NIC [auth s0], NJ [auth 1], NJA [auth 2], NJB [auth 5], NJC [auth d3], NK [auth 1], NKA [auth 2], NKB [auth 5], NL [auth 1], NLA [auth 2], NLB [auth 5], NM [auth 1], NMA [auth 2], NMB [auth 5], NN [auth 1], NNA [auth 5], NNB [auth 5], NO [auth 1], NOA [auth 5], NOB [auth 5], NP [auth 1], NPA [auth 5], NPB [auth 5], NQ [auth 1], NQA [auth 5], NR [auth 1], NRA [auth 5], NRB [auth 7], NS [auth 1], NSA [auth 5], NSB [auth 8], NT [auth 1], NTA [auth 5], NTB [auth l3], NU [auth 1], NUA [auth 5], NUB [auth l9], NV [auth 1], NVA [auth 5], NVB [auth m6], NW [auth 1], NWA [auth 5], NWB [auth n1], NX [auth 1], NXA [auth 5], NXB [auth q2], NY [auth 1], NYA [auth 5], NYB [auth 6], NZ [auth 1], NZA [auth 5], NZB [auth 6], OAA [auth 1], OAB [auth 5], OAC [auth 6], OBA [auth 1], OBB [auth 5], OBC [auth 6], OCA [auth 3], OCB [auth 5], OCC [auth 6], ODA [auth 4], ODB [auth 5], ODC [auth 6], OEA [auth L4], OEB [auth 5], OEC [auth 6], OF [auth 1], OFA [auth M7], OFB [auth 5], OFC [auth 6], OG [auth 1], OGA [auth O4], OGB [auth 5], OGC [auth 6], OH [auth 1], OHA [auth 2], OHB [auth 5], OHC [auth 6], OI [auth 1], OIA [auth 2], OIB [auth 5], OIC [auth s2], OJ [auth 1], OJA [auth 2], OJB [auth 5], OJC [auth d3], OK [auth 1], OKA [auth 2], OKB [auth 5], OL [auth 1], OLA [auth 2], OLB [auth 5], OM [auth 1], OMB [auth 5], ON [auth 1], ONA [auth 5], ONB [auth 5], OO [auth 1], OOA [auth 5], OOB [auth 5], OP [auth 1], OPA [auth 5], OPB [auth 5], OQ [auth 1], OQA [auth 5], OR [auth 1], ORA [auth 5], ORB [auth 7], OS [auth 1], OSA [auth 5], OSB [auth 8], OT [auth 1], OTA [auth 5], OTB [auth l3], OU [auth 1], OUA [auth 5], OUB [auth l9], OV [auth 1], OVA [auth 5], OVB [auth m6], OW [auth 1], OWA [auth 5], OWB [auth n3], OX [auth 1], OXA [auth 5], OXB [auth q2], OY [auth 1], OYA [auth 5], OYB [auth 6], OZ [auth 1], OZA [auth 5], OZB [auth 6], PAA [auth 1], PAB [auth 5], PAC [auth 6], PBA [auth 1], PBB [auth 5], PBC [auth 6], PCA [auth 3], PCB [auth 5], PCC [auth 6], PDA [auth 4], PDB [auth 5], PDC [auth 6], PEA [auth L4], PEB [auth 5], PEC [auth 6], PF [auth 1], PFA [auth M7], PFB [auth 5], PFC [auth 6], PG [auth 1], PGA [auth O6], PGB [auth 5], PGC [auth 6], PH [auth 1], PHA [auth 2], PHB [auth 5], PHC [auth 6], PI [auth 1], PIA [auth 2], PIB [auth 5], PIC [auth s2], PJ [auth 1], PJA [auth 2], PJB [auth 5], PJC [auth d5], PK [auth 1], PKA [auth 2], PKB [auth 5], PL [auth 1], PLA [auth 2], PLB [auth 5], PM [auth 1], PMB [auth 5], PN [auth 1], PNA [auth 5], PNB [auth 5], PO [auth 1], POA [auth 5], POB [auth 5], PP [auth 1], PPA [auth 5], PPB [auth 5], PQ [auth 1], PQA [auth 5], PR [auth 1], PRA [auth 5], PRB [auth 7], PS [auth 1], PSA [auth 5], PSB [auth 8], PT [auth 1], PTA [auth 5], PTB [auth l3], PU [auth 1], PUA [auth 5], PUB [auth l9], PV [auth 1], PVA [auth 5], PVB [auth m6], PW [auth 1], PWA [auth 5], PWB [auth n3], PX [auth 1], PXA [auth 5], PXB [auth q2], PY [auth 1], PYA [auth 5], PYB [auth 6], PZ [auth 1], PZA [auth 5], PZB [auth 6], QAA [auth 1], QAB [auth 5], QAC [auth 6], QBA [auth 1], QBB [auth 5], QBC [auth 6], QCA [auth 3], QCB [auth 5], QCC [auth 6], QDA [auth 4], QDB [auth 5], QDC [auth 6], QEA [auth L4], QEB [auth 5], QEC [auth 6], QF [auth 1], QFA [auth M8], QFB [auth 5], QFC [auth 6], QG [auth 1], QGB [auth 5], QGC [auth 6], QH [auth 1], QHA [auth 2], QHB [auth 5], QHC [auth 6], QI [auth 1], QIA [auth 2], QIB [auth 5], QIC [auth s3], QJ [auth 1], QJA [auth 2], QJB [auth 5], QK [auth 1], QKA [auth 2], QKB [auth 5], QL [auth 1], QLA [auth 2], QLB [auth 5], QM [auth 1], QMB [auth 5], QN [auth 1], QNA [auth 5], QNB [auth 5], QO [auth 1], QOA [auth 5], QOB [auth 5], QP [auth 1], QPA [auth 5], QPB [auth 5], QQ [auth 1], QQA [auth 5], QR [auth 1], QRA [auth 5], QRB [auth 7], QS [auth 1], QSA [auth 5], QSB [auth 8], QT [auth 1], QTA [auth 5], QTB [auth l3], QU [auth 1], QUA [auth 5], QUB [auth l9], QV [auth 1], QVA [auth 5], QVB [auth m6], QW [auth 1], QWA [auth 5], QWB [auth n5], QX [auth 1], QXA [auth 5], QXB [auth q2], QY [auth 1], QYA [auth 5], QYB [auth 6], QZ [auth 1], QZA [auth 5], QZB [auth 6], RAA [auth 1], RAB [auth 5], RAC [auth 6], RBA [auth 1], RBB [auth 5], RBC [auth 6], RCA [auth 3], RCB [auth 5], RCC [auth 6], RDA [auth 4], RDB [auth 5], RDC [auth 6], REA [auth L4], REB [auth 5], REC [auth 6], RF [auth 1], RFA [auth N0], RFB [auth 5], RFC [auth 6], RG [auth 1], RGA [auth O7], RGB [auth 5], RGC [auth 6], RH [auth 1], RHA [auth 2], RHB [auth 5], RHC [auth 6], RI [auth 1], RIA [auth 2], RIB [auth 5], RIC [auth s4], RJ [auth 1], RJA [auth 2], RJB [auth 5], RJC [auth d6], RK [auth 1], RKA [auth 2], RKB [auth 5], RL [auth 1], RLA [auth 2], RLB [auth 5], RM [auth 1], RMA [auth S1], RMB [auth 5], RN [auth 1], RNA [auth 5], RNB [auth 5], RO [auth 1], ROA [auth 5], ROB [auth 5], RP [auth 1], RPA [auth 5], RPB [auth 5], RQ [auth 1], RQA [auth 5], RR [auth 1], RRA [auth 5], RRB [auth 7], RS [auth 1], RSA [auth 5], RSB [auth 8], RT [auth 1], RTA [auth 5], RTB [auth l3], RU [auth 1], RUA [auth 5], RUB [auth l9], RV [auth 1], RVA [auth 5], RVB [auth m6], RW [auth 1], RWA [auth 5], RWB [auth n5], RX [auth 1], RXA [auth 5], RXB [auth q2], RY [auth 1], RYA [auth 5], RYB [auth 6], RZ [auth 1], RZA [auth 5], RZB [auth 6], SAA [auth 1], SAB [auth 5], SAC [auth 6], SBA [auth 1], SBB [auth 5], SBC [auth 6], SCA [auth 3], SCB [auth 5], SCC [auth 6], SDA [auth 4], SDB [auth 5], SDC [auth 6], SEA [auth L5], SEB [auth 5], SEC [auth 6], SF [auth 1], SFA [auth N0], SFB [auth 5], SFC [auth 6], SG [auth 1], SGA [auth O7], SGB [auth 5], SGC [auth 6], SH [auth 1], SHA [auth 2], SHB [auth 5], SHC [auth 6], SI [auth 1], SIA [auth 2], SIB [auth 5], SIC [auth s5], SJ [auth 1], SJA [auth 2], SJB [auth 5], SJC [auth d6], SK [auth 1], SKA [auth 2], SKB [auth 5], SL [auth 1], SLA [auth 2], SLB [auth 5], SM [auth 1], SMA [auth S2], SMB [auth 5], SN [auth 1], SNA [auth 5], SNB [auth 5], SO [auth 1], SOA [auth 5], SOB [auth 5], SP [auth 1], SPA [auth 5], SPB [auth 5], SQ [auth 1], SQA [auth 5], SR [auth 1], SRA [auth 5], SRB [auth 7], SS [auth 1], SSA [auth 5], SSB [auth 8], ST [auth 1], STA [auth 5], STB [auth l3], SU [auth 1], SUA [auth 5], SUB [auth l9], SV [auth 1], SVA [auth 5], SVB [auth m7], SW [auth 1], SWA [auth 5], SWB [auth n5], SX [auth 1], SXA [auth 5], SXB [auth q2], SY [auth 1], SYA [auth 5], SYB [auth 6], SZ [auth 1], SZA [auth 5], SZB [auth 6], TAA [auth 1], TAB [auth 5], TAC [auth 6], TBA [auth 1], TBB [auth 5], TBC [auth 6], TCA [auth 3], TCB [auth 5], TCC [auth 6], TDA [auth 4], TDB [auth 5], TDC [auth 6], TEA [auth L7], TEB [auth 5], TEC [auth 6], TF [auth 1], TFA [auth N0], TFB [auth 5], TFC [auth 6], TG [auth 1], TGA [auth O7], TGB [auth 5], TGC [auth 6], TH [auth 1], THA [auth 2], THB [auth 5], THC [auth 6], TI [auth 1], TIA [auth 2], TIB [auth 5], TIC [auth s5], TJ [auth 1], TJA [auth 2], TJB [auth 5], TJC [auth d6], TK [auth 1], TKA [auth 2], TKB [auth 5], TL [auth 1], TLA [auth 2], TLB [auth 5], TM [auth 1], TMA [auth S3], TMB [auth 5], TN [auth 1], TNA [auth 5], TNB [auth 5], TO [auth 1], TOA [auth 5], TOB [auth 5], TP [auth 1], TPA [auth 5], TPB [auth 5], TQ [auth 1], TQA [auth 5], TR [auth 1], TRA [auth 5], TRB [auth 7], TS [auth 1], TSA [auth 5], TSB [auth 8], TT [auth 1], TTA [auth 5], TTB [auth l3], TU [auth 1], TUA [auth 5], TUB [auth l9], TV [auth 1], TVA [auth 5], TVB [auth m7], TW [auth 1], TWA [auth 5], TWB [auth n8], TX [auth 1], TXA [auth 5], TY [auth 1], TYA [auth 5], TYB [auth 6], TZ [auth 1], TZA [auth 5], TZB [auth 6], UAA [auth 1], UAB [auth 5], UAC [auth 6], UBA [auth 1], UBB [auth 5], UBC [auth 6], UCA [auth 3], UCB [auth 5], UCC [auth 6], UDA [auth 4], UDB [auth 5], UDC [auth 6], UEA [auth L8], UEB [auth 5], UEC [auth 6], UF [auth 1], UFA [auth N0], UFB [auth 5], UFC [auth 6], UG [auth 1], UGB [auth 5], UGC [auth 6], UH [auth 1], UHA [auth 2], UHB [auth 5], UHC [auth 6], UI [auth 1], UIA [auth 2], UIB [auth 5], UIC [auth s5], UJ [auth 1], UJA [auth 2], UJB [auth 5], UK [auth 1], UKA [auth 2], UKB [auth 5], UL [auth 1], ULA [auth 2], ULB [auth 5], UM [auth 1], UMA [auth S4], UMB [auth 5], UN [auth 1], UNA [auth 5], UNB [auth 5], UO [auth 1], UOA [auth 5], UOB [auth 5], UP [auth 1], UPA [auth 5], UPB [auth 5], UQ [auth 1], UQA [auth 5], UR [auth 1], URA [auth 5], URB [auth 7], US [auth 1], USA [auth 5], USB [auth 8], UT [auth 1], UTA [auth 5], UTB [auth l3], UU [auth 1], UUA [auth 5], UUB [auth l9], UV [auth 1], UVA [auth 5], UVB [auth m7], UW [auth 1], UWA [auth 5], UWB [auth n8], UX [auth 1], UXA [auth 5], UXB [auth q3], UY [auth 1], UYA [auth 5], UYB [auth 6], UZ [auth 1], UZA [auth 5], UZB [auth 6], VAA [auth 1], VAB [auth 5], VAC [auth 6], VBB [auth 5], VBC [auth 6], VCA [auth 3], VCB [auth 5], VCC [auth 6], VDA [auth 4], VDB [auth 5], VDC [auth 6], VEA [auth L9], VEB [auth 5], VEC [auth 6], VF [auth 1], VFA [auth N1], VFB [auth 5], VFC [auth 6], VG [auth 1], VGA [auth Q1], VGB [auth 5], VGC [auth 6], VH [auth 1], VHA [auth 2], VHB [auth 5], VHC [auth 6], VI [auth 1], VIA [auth 2], VIB [auth 5], VIC [auth s6], VJ [auth 1], VJA [auth 2], VJB [auth 5], VJC [auth d7], VK [auth 1], VKA [auth 2], VKB [auth 5], VL [auth 1], VLA [auth 2], VLB [auth 5], VM [auth 1], VMA [auth C1], VMB [auth 5], VN [auth 1], VNA [auth 5], VNB [auth 5], VO [auth 1], VOA [auth 5], VOB [auth 5], VP [auth 1], VPA [auth 5], VPB [auth 5], VQ [auth 1], VQA [auth 5], VR [auth 1], VRA [auth 5], VRB [auth 7], VS [auth 1], VSA [auth 5], VSB [auth 8], VT [auth 1], VTA [auth 5], VTB [auth l3], VU [auth 1], VUA [auth 5], VUB [auth m0], VV [auth 1], VVA [auth 5], VVB [auth m7], VW [auth 1], VWA [auth 5], VWB [auth n8], VX [auth 1], VXA [auth 5], VXB [auth q3], VY [auth 1], VYA [auth 5], VYB [auth 6], VZ [auth 1], VZA [auth 5], VZB [auth 6], WAA [auth 1], WAB [auth 5], WAC [auth 6], WBB [auth 5], WBC [auth 6], WCA [auth 3], WCB [auth 5], WCC [auth 6], WDA [auth 4], WDB [auth 5], WDC [auth 6], WEA [auth M0], WEB [auth 5], WEC [auth 6], WF [auth 1], WFA [auth N1], WFB [auth 5], WFC [auth 6], WG [auth 1], WGB [auth 5], WGC [auth 6], WH [auth 1], WHA [auth 2], WHB [auth 5], WHC [auth 6], WI [auth 1], WIA [auth 2], WIB [auth 5], WIC [auth c1], WJ [auth 1], WJA [auth 2], WJB [auth 5], WK [auth 1], WKA [auth 2], WKB [auth 5], WL [auth 1], WLA [auth 2], WLB [auth 5], WM [auth 1], WMA [auth C3], WMB [auth 5], WN [auth 1], WNA [auth 5], WNB [auth 5], WO [auth 1], WOA [auth 5], WOB [auth 5], WP [auth 1], WPA [auth 5], WPB [auth 5], WQ [auth 1], WQA [auth 5], WR [auth 1], WRA [auth 5], WRB [auth 7], WS [auth 1], WSA [auth 5], WSB [auth 8], WT [auth 1], WTA [auth 5], WTB [auth l3], WU [auth 1], WUA [auth 5], WUB [auth m0], WV [auth 1], WVA [auth 5], WVB [auth m7], WW [auth 1], WWA [auth 5], WWB [auth n9], WX [auth 1], WXA [auth 5], WXB [auth q3], WY [auth 1], WYA [auth 5], WYB [auth 6], WZ [auth 1], WZA [auth 5], WZB [auth 6], XAA [auth 1], XAB [auth 5], XAC [auth 6], XBB [auth 5], XBC [auth 6], XCA [auth 3], XCB [auth 5], XCC [auth 6], XDA [auth 4], XDB [auth 5], XDC [auth 6], XEA [auth M0], XEB [auth 5], XEC [auth 6], XF [auth 1], XFA [auth N3], XFB [auth 5], XFC [auth 6], XG [auth 1], XGA [auth Q2], XGB [auth 5], XGC [auth 6], XH [auth 1], XHA [auth 2], XHB [auth 5], XHC [auth 6], XI [auth 1], XIA [auth 2], XIB [auth 5], XIC [auth c3], XJ [auth 1], XJA [auth 2], XJB [auth 5], XJC [auth d9], XK [auth 1], XKA [auth 2], XKB [auth 5], XL [auth 1], XLA [auth 2], XLB [auth 5], XM [auth 1], XMA [auth C8], XMB [auth 5], XN [auth 1], XNA [auth 5], XNB [auth 5], XO [auth 1], XOA [auth 5], XOB [auth 5], XP [auth 1], XPA [auth 5], XPB [auth 5], XQ [auth 1], XQA [auth 5], XR [auth 1], XRA [auth 5], XRB [auth 7], XS [auth 1], XSA [auth 5], XSB [auth 8], XT [auth 1], XTA [auth 5], XTB [auth l3], XU [auth 1], XUA [auth 5], XUB [auth m3], XV [auth 1], XVA [auth 5], XVB [auth m7], XW [auth 1], XWA [auth 5], XWB [auth o1], XX [auth 1], XXA [auth 5], XXB [auth 6], XY [auth 1], XYA [auth 5], XYB [auth 6], XZ [auth 1], XZA [auth 5], XZB [auth 6], YAA [auth 1], YAB [auth 5], YAC [auth 6], YBB [auth 5], YBC [auth 6], YCA [auth 3], YCB [auth 5], YCC [auth 6], YDA [auth 4], YDB [auth 5], YDC [auth 6], YEA [auth M0], YEB [auth 5], YEC [auth 6], YF [auth 1], YFA [auth N3], YFB [auth 5], YFC [auth 6], YG [auth 1], YGA [auth Q2], YGB [auth 5], YGC [auth 6], YH [auth 1], YHA [auth 2], YHB [auth 5], YHC [auth 6], YI [auth 1], YIA [auth 2], YIB [auth 5], YIC [auth c3], YJ [auth 1], YJA [auth 2], YJB [auth 5], YK [auth 1], YKA [auth 2], YKB [auth 5], YL [auth 1], YLA [auth 2], YLB [auth 5], YM [auth 1], YMA [auth D3], YMB [auth 5], YN [auth 1], YNA [auth 5], YNB [auth 5], YO [auth 1], YOA [auth 5], YOB [auth 5], YP [auth 1], YPA [auth 5], YPB [auth 5], YQ [auth 1], YQA [auth 5], YR [auth 1], YRA [auth 5], YRB [auth 7], YS [auth 1], YSA [auth 5], YSB [auth 8], YT [auth 1], YTA [auth 5], YU [auth 1], YUA [auth 5], YUB [auth m3], YV [auth 1], YVA [auth 5], YVB [auth m7], YW [auth 1], YWA [auth 5], YWB [auth o2], YX [auth 1], YXA [auth 5], YXB [auth 6], YY [auth 1], YYA [auth 5], YYB [auth 6], YZ [auth 1], YZA [auth 5], YZB [auth 6], ZAA [auth 1], ZAB [auth 5], ZAC [auth 6], ZBB [auth 5], ZBC [auth 6], ZCA [auth 3], ZCB [auth 5], ZCC [auth 6], ZDA [auth 4], ZDB [auth 5], ZDC [auth 6], ZEA [auth M0], ZEB [auth 5], ZEC [auth 6], ZF [auth 1], ZFA [auth N3], ZFB [auth 5], ZFC [auth 6], ZG [auth 1], ZGA [auth Q2], ZGB [auth 5], ZGC [auth 6], ZH [auth 1], ZHA [auth 2], ZHB [auth 5], ZHC [auth 6], ZI [auth 1], ZIA [auth 2], ZIB [auth 5], ZIC [auth c3], ZJ [auth 1], ZJA [auth 2], ZJB [auth 5], ZJC [auth sR], ZK [auth 1], ZKA [auth 2], ZKB [auth 5], ZL [auth 1], ZLA [auth 2], ZLB [auth 5], ZM [auth 1], ZMA [auth D3], ZMB [auth 5], ZN [auth 1], ZNA [auth 5], ZNB [auth 5], ZO [auth 1], ZOA [auth 5], ZOB [auth 5], ZP [auth 1], ZPA [auth 5], ZPB [auth 5], ZQ [auth 1], ZQA [auth 5], ZR [auth 1], ZRA [auth 5], ZRB [auth 7], ZS [auth 1], ZSA [auth 5], ZSB [auth 8], ZT [auth 1], ZTA [auth 5], ZTB [auth l4], ZU [auth 1], ZUA [auth 5], ZUB [auth m3], ZV [auth 1], ZVA [auth 5], ZVB [auth m8], ZW [auth 1], ZWA [auth 5], ZWB [auth o2], ZX [auth 1], ZXA [auth 5], ZXB [auth 6], ZY [auth 1], ZYA [auth 5], ZYB [auth 6], ZZ [auth 1], ZZA [auth 5], ZZB [auth 6]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 3.40 Å
• R-Value Free: 0.238
• R-Value Work: 0.189
• R-Value Observed: 0.190
• Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 436.63	α = 90
b = 287	β = 99.08
c = 304.73	γ = 90

Software Package:

Software Name	Purpose
XSCALE	data scaling
PHENIX	refinement
PDB_EXTRACT	data extraction
XDS	data reduction
PHENIX	phasing

Structure Validation

Entry History

Deposition Data

• Released Date: 2017-12-13
Deposition Author(s): Prokhorova, I., Djumagulov, M., Urzhumtsev, A., Yusupov, M., Yusupova, G.

Revision History

• Version 1.0: 2017-12-13
  Type: Initial release

• Version 1.1: 2017-12-20
  Changes: Database references
• Version 1.2: 2017-12-27
  Changes: Database references
• Version 1.3: 2024-05-08
  Changes: Data collection, Database references, Derived calculations, Structure summary
