6ZRC

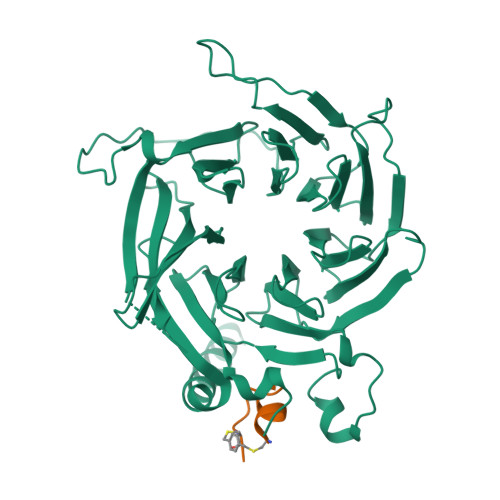

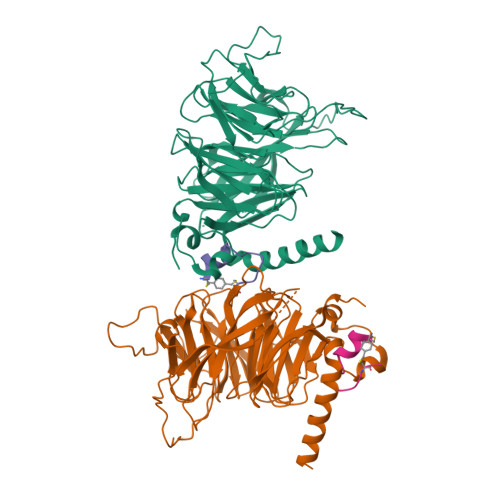

Structure of the human RBAP48 in complex with a macrocyclic peptide cyclized via a xylene linker attached to two cysteines


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.60 Å
  • R-Value Free: 0.293
  • R-Value Work: 0.263
  • R-Value Observed: 0.264

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Structure Based Design of Bicyclic Peptide Inhibitors of RbAp48.

Hart, P.'.Hommen, P.Noisier, A.Krzyzanowski, A.Schuler, D.Porfetye, A.T.Akbarzadeh, M.Vetter, I.R.Adihou, H.Waldmann, H.

(2021) Angew Chem Int Ed Engl 60: 1813-1820

  • DOI: https://doi.org/10.1002/anie.202009749
  • Primary Citation of Related Structures:
    6ZRC, 6ZRD

  • PubMed Abstract:

    The scaffolding protein RbAp48 is part of several epigenetic regulation complexes and is overexpressed in a variety of cancers. In order to develop tool compounds for the study of RbAp48 function, we have developed peptide inhibitors targeting the protein-protein interaction interface between RbAp48 and the scaffold protein MTA1. Based on a MTA1-derived linear peptide with low micromolar affinity and informed by crystallographic analysis, a bicyclic peptide was developed that inhibits the RbAp48/MTA1 interaction with a very low nanomolar K D value of 8.56 nM, and which showed appreciable stability against cellular proteases. Design included exchange of a polar amide cyclization strategy to hydrophobic aromatic linkers enabling mono- and bicyclization by means of cysteine alkylation, which improved affinity by direct interaction of the linkers with a hydrophobic residue on RbAp48. Our results demonstrate that stepwise evolution of a structure-based design is a suitable strategy for inhibitor development targeting PPIs.


  • Organizational Affiliation

    Department of Chemical Biology, Max Planck Institute of Molecular Physiology, Otto-Hahn-Strasse 11, 44227, Dortmund, Germany.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Histone-binding protein RBBP4A,
D [auth B]
427Homo sapiensMutation(s): 0
Gene Names: RBBP4RBAP48
UniProt & NIH Common Fund Data Resources
Find proteins for Q09028 (Homo sapiens)
Explore Q09028
Go to UniProtKB:  Q09028
PHAROS:  Q09028
GTEx:  ENSG00000162521
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ09028
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
macrocyclic peptide based on residues 659-672 of the metastasis-associated protein MTA1B [auth P],
C [auth Q]
16Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q13330 (Homo sapiens)
Explore Q13330
Go to UniProtKB:  Q13330
PHAROS:  Q13330
GTEx:  ENSG00000182979
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ13330
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.60 Å
  • R-Value Free: 0.293
  • R-Value Work: 0.263
  • R-Value Observed: 0.264
  • Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 71.96α = 90
b = 96.325β = 90.01
c = 149.3γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XSCALEdata scaling
PDB_EXTRACTdata extraction
XDSdata reduction
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
German Research Foundation (DFG)GermanyCRC1093

Revision History  (Full details and data files)

  • Version 1.0: 2020-10-28
    Type: Initial release
  • Version 1.1: 2021-01-27
    Changes: Database references
  • Version 1.2: 2024-01-31
    Changes: Data collection, Database references, Refinement description
