6GJ8

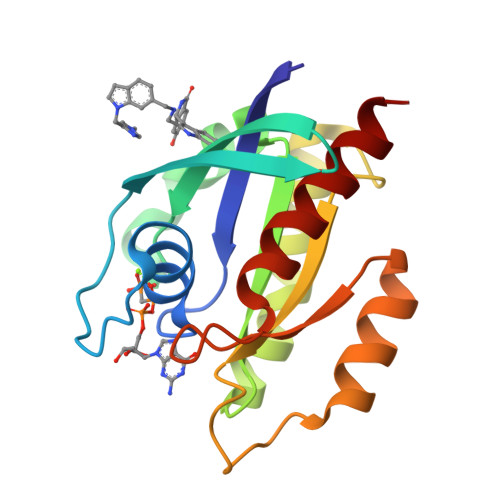

CRYSTAL STRUCTURE OF KRAS G12D (GPPCP) IN COMPLEX WITH BI 2852


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.65 Å
  • R-Value Free: 0.198
  • R-Value Work: 0.176
  • R-Value Observed: 0.177

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.3 of the entry. See complete history


Literature

Drugging an undruggable pocket on KRAS.

Kessler, D.Gmachl, M.Mantoulidis, A.Martin, L.J.Zoephel, A.Mayer, M.Gollner, A.Covini, D.Fischer, S.Gerstberger, T.Gmaschitz, T.Goodwin, C.Greb, P.Haring, D.Hela, W.Hoffmann, J.Karolyi-Oezguer, J.Knesl, P.Kornigg, S.Koegl, M.Kousek, R.Lamarre, L.Moser, F.Munico-Martinez, S.Peinsipp, C.Phan, J.Rinnenthal, J.Sai, J.Salamon, C.Scherbantin, Y.Schipany, K.Schnitzer, R.Schrenk, A.Sharps, B.Siszler, G.Sun, Q.Waterson, A.Wolkerstorfer, B.Zeeb, M.Pearson, M.Fesik, S.W.McConnell, D.B.

(2019) Proc Natl Acad Sci U S A 116: 15823-15829

  • DOI: https://doi.org/10.1073/pnas.1904529116
  • Primary Citation of Related Structures:
    6GJ5, 6GJ6, 6GJ7, 6GJ8

  • PubMed Abstract:

    The 3 human RAS genes, KRAS, NRAS, and HRAS, encode 4 different RAS proteins which belong to the protein family of small GTPases that function as binary molecular switches involved in cell signaling. Activating mutations in RAS are among the most common oncogenic drivers in human cancers, with KRAS being the most frequently mutated oncogene. Although KRAS is an excellent drug discovery target for many cancers, and despite decades of research, no therapeutic agent directly targeting RAS has been clinically approved. Using structure-based drug design, we have discovered BI-2852 (1), a KRAS inhibitor that binds with nanomolar affinity to a pocket, thus far perceived to be "undruggable," between switch I and II on RAS; 1 is mechanistically distinct from covalent KRAS G12C inhibitors because it binds to a different pocket present in both the active and inactive forms of KRAS. In doing so, it blocks all GEF, GAP, and effector interactions with KRAS, leading to inhibition of downstream signaling and an antiproliferative effect in the low micromolar range in KRAS mutant cells. These findings clearly demonstrate that this so-called switch I/II pocket is indeed druggable and provide the scientific community with a chemical probe that simultaneously targets the active and inactive forms of KRAS.


  • Organizational Affiliation

    Discovery Research, Boehringer Ingelheim Regional Center Vienna GmbH & Co KG, 1120 Vienna, Austria.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
GTPase KRas169Homo sapiensMutation(s): 1
Gene Names: KRASKRAS2RASK2
EC: 3.6.5.2
UniProt & NIH Common Fund Data Resources
Find proteins for P01116 (Homo sapiens)
Explore P01116
Go to UniProtKB:  P01116
PHAROS:  P01116
GTEx:  ENSG00000133703
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP01116
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
GCP
Query on GCP

Download Ideal Coordinates CCD File
D [auth A]PHOSPHOMETHYLPHOSPHONIC ACID GUANYLATE ESTER
C11 H18 N5 O13 P3
PHBDHXOBFUBCJD-KQYNXXCUSA-N
F0K
Query on F0K

Download Ideal Coordinates CCD File
B [auth A](3~{S})-3-[2-[[[1-[(1-methylimidazol-4-yl)methyl]indol-6-yl]methylamino]methyl]-1~{H}-indol-3-yl]-5-oxidanyl-2,3-dihydroisoindol-1-one
C31 H28 N6 O2
JYEQLXOWWLNVDX-PMERELPUSA-N
MG
Query on MG

Download Ideal Coordinates CCD File
C [auth A]MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.65 Å
  • R-Value Free: 0.198
  • R-Value Work: 0.176
  • R-Value Observed: 0.177
  • Space Group: C 2 2 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 41.604α = 90
b = 116.842β = 90
c = 91.486γ = 90
Software Package:
Software NamePurpose
BUSTERrefinement
XDSdata reduction
XSCALEdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Austrian Science FundAustria854341

Revision History  (Full details and data files)

  • Version 1.0: 2019-07-31
    Type: Initial release
  • Version 1.1: 2019-08-07
    Changes: Data collection, Database references
  • Version 1.2: 2019-08-14
    Changes: Data collection, Database references
  • Version 1.3: 2024-01-17
    Changes: Data collection, Database references, Refinement description
