7UM0

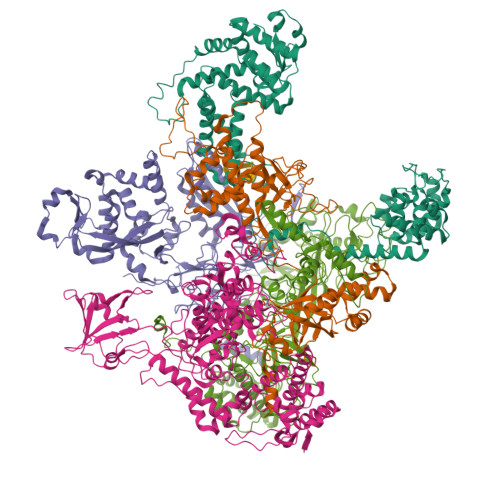

Structure of the phage AR9 non-virion RNA polymerase holoenzyme in complex with two DNA oligonucleotides containing the AR9 P077 promoter as determined by cryo-EM


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.80 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 2.0 of the entry. See complete history


Literature

Structural basis of template strand deoxyuridine promoter recognition by a viral RNA polymerase.

Fraser, A.Sokolova, M.L.Drobysheva, A.V.Gordeeva, J.V.Borukhov, S.Jumper, J.Severinov, K.V.Leiman, P.G.

(2022) Nat Commun 13: 3526-3526

  • DOI: https://doi.org/10.1038/s41467-022-31214-6
  • Primary Citation of Related Structures:
    7S00, 7S01, 7UM0, 7UM1

  • PubMed Abstract:

    Recognition of promoters in bacterial RNA polymerases (RNAPs) is controlled by sigma subunits. The key sequence motif recognized by the sigma, the -10 promoter element, is located in the non-template strand of the double-stranded DNA molecule ~10 nucleotides upstream of the transcription start site. Here, we explain the mechanism by which the phage AR9 non-virion RNAP (nvRNAP), a bacterial RNAP homolog, recognizes the -10 element of its deoxyuridine-containing promoter in the template strand. The AR9 sigma-like subunit, the nvRNAP enzyme core, and the template strand together form two nucleotide base-accepting pockets whose shapes dictate the requirement for the conserved deoxyuridines. A single amino acid substitution in the AR9 sigma-like subunit allows one of these pockets to accept a thymine thus expanding the promoter consensus. Our work demonstrates the extent to which viruses can evolve host-derived multisubunit enzymes to make transcription of their own genes independent of the host.


  • Organizational Affiliation

    Department of Biochemistry and Molecular Biology, Sealy Center for Structural Biology and Molecular Biophysics, University of Texas Medical Branch, Galveston, TX, 77555-0647, USA.


Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase subunit464Bacillus phage AR9Mutation(s): 0
Gene Names: AR9_g226
UniProt
Find proteins for A0A172JIC8 (Bacillus phage AR9)
Explore A0A172JIC8
Go to UniProtKB:  A0A172JIC8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A172JIC8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase beta' subunitB [auth d]448Bacillus phage AR9Mutation(s): 0
Gene Names: AR9_g270
EC: 2.7.7.6
UniProt
Find proteins for A0A172JIH0 (Bacillus phage AR9)
Explore A0A172JIH0
Go to UniProtKB:  A0A172JIH0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A172JIH0
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase beta subunitC [auth c]496Bacillus phage AR9Mutation(s): 0
Gene Names: AR9_g105
UniProt
Find proteins for A0A172JI16 (Bacillus phage AR9)
Explore A0A172JI16
Go to UniProtKB:  A0A172JI16
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A172JI16
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase631Bacillus phage AR9Mutation(s): 0
Gene Names: AR9_g154
EC: 2.7.7.6
UniProt
Find proteins for A0A172JI62 (Bacillus phage AR9)
Explore A0A172JI62
Go to UniProtKB:  A0A172JI62
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A172JI62
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
DNA-directed RNA polymeraseE [auth C]665Bacillus phage AR9Mutation(s): 0
Gene Names: AR9_g089
EC: 2.7.7.6
UniProt
Find proteins for A0A172JHZ2 (Bacillus phage AR9)
Explore A0A172JHZ2
Go to UniProtKB:  A0A172JHZ2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A172JHZ2
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 6
MoleculeChains LengthOrganismImage
DNA (5'-D(P*GP*UP*U)-3')F [auth B]3synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
ZN
Query on ZN

Download Ideal Coordinates CCD File
G [auth D]ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.80 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other governmentUnited StatesUTMB internal

Revision History  (Full details and data files)

  • Version 1.0: 2022-07-06
    Type: Initial release
  • Version 1.1: 2024-02-14
    Changes: Data collection, Refinement description
  • Version 2.0: 2024-05-29
    Changes: Advisory, Atomic model, Author supporting evidence, Data collection, Database references, Derived calculations, Polymer sequence, Source and taxonomy, Structure summary
