7FAZ

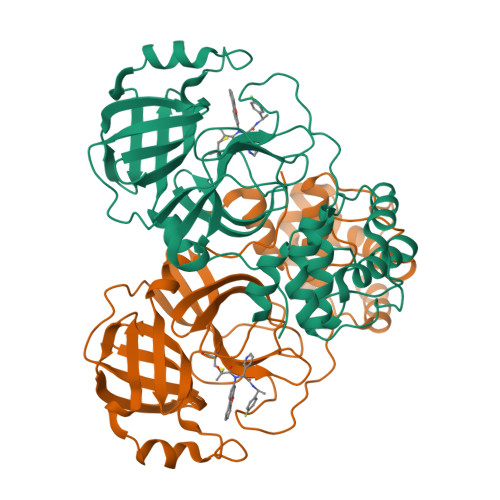

Crystal structure of the SARS-CoV-2 main protease in complex with Y180


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.10 Å
  • R-Value Free: 0.243
  • R-Value Work: 0.190
  • R-Value Observed: 0.193

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.3 of the entry. See complete history


Literature

An orally available M pro inhibitor is effective against wild-type SARS-CoV-2 and variants including Omicron.

Quan, B.X.Shuai, H.Xia, A.J.Hou, Y.Zeng, R.Liu, X.L.Lin, G.F.Qiao, J.X.Li, W.P.Wang, F.L.Wang, K.Zhou, R.J.Yuen, T.T.Chen, M.X.Yoon, C.Wu, M.Zhang, S.Y.Huang, C.Wang, Y.F.Yang, W.Tian, C.Li, W.M.Wei, Y.Q.Yuen, K.Y.Chan, J.F.Lei, J.Chu, H.Yang, S.

(2022) Nat Microbiol 7: 716-725

  • DOI: https://doi.org/10.1038/s41564-022-01119-7
  • Primary Citation of Related Structures:
    7FAY, 7FAZ

  • PubMed Abstract:

    Emerging SARS-CoV-2 variants continue to cause waves of new infections globally. Developing effective antivirals against SARS-CoV-2 and its variants is an urgent task. The main protease (M pro ) of SARS-CoV-2 is an attractive drug target because of its central role in viral replication and its conservation among variants. We herein report a series of potent α-ketoamide-containing M pro inhibitors obtained using the Ugi four-component reaction. The prioritized compound, Y180, showed an IC 50 of 8.1 nM against SARS-CoV-2 M pro and had oral bioavailability of 92.9%, 31.9% and 85.7% in mice, rats and dogs, respectively. Y180 protected against wild-type SARS-CoV-2, B.1.1.7 (Alpha), B.1.617.1 (Kappa) and P.3 (Theta), with EC 50 of 11.4, 20.3, 34.4 and 23.7 nM, respectively. Oral treatment with Y180 displayed a remarkable antiviral potency and substantially ameliorated the virus-induced tissue damage in both nasal turbinate and lung of B.1.1.7-infected K18-human ACE2 (K18-hACE2) transgenic mice. Therapeutic treatment with Y180 improved the survival of mice from 0 to 44.4% (P = 0.0086) upon B.1.617.1 infection in the lethal infection model. Importantly, Y180 was also highly effective against the B.1.1.529 (Omicron) variant both in vitro and in vivo. Overall, our study provides a promising lead compound for oral drug development against SARS-CoV-2.


  • Organizational Affiliation

    State Key Laboratory of Biotherapy and Cancer Center, West China Hospital, Sichuan University, Chengdu, Sichuan, China.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
3C-like proteinase
A, B
306Severe acute respiratory syndrome coronavirus 2Mutation(s): 0
EC: 3.4.22.69
UniProt
Find proteins for P0DTD1 (Severe acute respiratory syndrome coronavirus 2)
Explore P0DTD1
Go to UniProtKB:  P0DTD1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0DTD1
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.10 Å
  • R-Value Free: 0.243
  • R-Value Work: 0.190
  • R-Value Observed: 0.193
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 67.614α = 90
b = 97.956β = 90
c = 101.593γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
PHASERphasing
Aimlessdata scaling
XDSdata reduction

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)ChinaHX2019nCoV039/00402354A1028

Revision History  (Full details and data files)

  • Version 1.0: 2021-07-21
    Type: Initial release
  • Version 1.1: 2023-02-01
    Changes: Advisory, Database references
  • Version 1.2: 2023-11-29
    Changes: Data collection, Refinement description
  • Version 1.3: 2024-10-16
    Changes: Structure summary
