7PLK

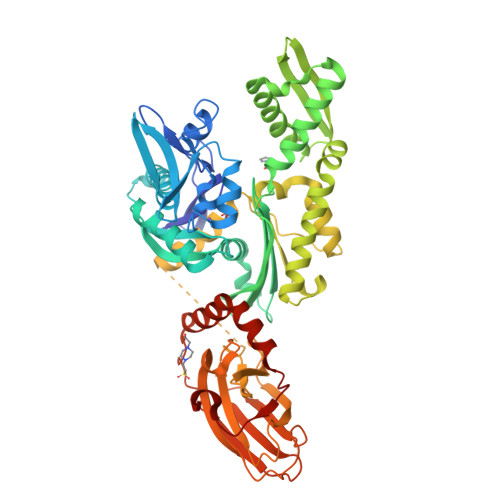

Crystal structure bovine Hsc70(aa1-554)E213A/D214A in complex with nicotinic-acid-derivative


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.49 Å
  • R-Value Free: 0.286
  • R-Value Work: 0.223
  • R-Value Observed: 0.230

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Combined In-Solution Fragment Screening and Crystallographic Binding-Mode Analysis with a Two-Domain Hsp70 Construct.

Zehe, M.Kehrein, J.Schollmayer, C.Plank, C.Kovacs, H.Merino Asumendi, E.Holzgrabe, U.Grimm, C.Sotriffer, C.

(2024) ACS Chem Biol

  • DOI: https://doi.org/10.1021/acschembio.3c00589
  • Primary Citation of Related Structures:
    6H54, 7O6R, 7ODB, 7ODD, 7ODI, 7PLK

  • PubMed Abstract:

    Heat shock protein 70 (Hsp70) isoforms are key players in the regulation of protein homeostasis and cell death pathways and are therefore attractive targets in cancer research. Developing nucleotide-competitive inhibitors or allosteric modulators, however, has turned out to be very challenging for this protein family, and no Hsp70-directed therapeutics have so far become available. As the field could profit from alternative starting points for inhibitor development, we present the results of a fragment-based screening approach on a two-domain Hsp70 construct using in-solution NMR methods, together with X-ray-crystallographic investigations and mixed-solvent molecular dynamics simulations. The screening protocol resulted in hits on both domains. In particular, fragment binding in a deeply buried pocket at the substrate-binding domain could be detected. The corresponding site is known to be important for communication between the nucleotide-binding and substrate-binding domains of Hsp70 proteins. The main fragment identified at this position also offers an interesting starting point for the development of a dual Hsp70/Hsp90 inhibitor.


  • Organizational Affiliation

    University of Würzburg, Institute of Pharmacy and Food Chemistry, Am Hubland, DE-97074 Würzburg, Germany.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Heat shock cognate 71 kDa protein554Bos taurusMutation(s): 2
Gene Names: HSPA8HSC70
EC: 3.6.4.10
UniProt
Find proteins for P19120 (Bos taurus)
Explore P19120
Go to UniProtKB:  P19120
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP19120
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.49 Å
  • R-Value Free: 0.286
  • R-Value Work: 0.223
  • R-Value Observed: 0.230
  • Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 66.078α = 90
b = 48.799β = 99.548
c = 86.476γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
MxCuBEdata collection
Cootmodel building

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2022-09-07
    Type: Initial release
  • Version 1.1: 2024-01-31
    Changes: Data collection, Refinement description
  • Version 1.2: 2024-02-14
    Changes: Database references
