7SH9

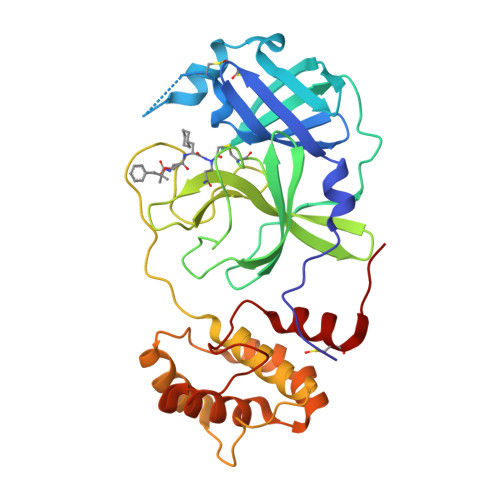

Structure of the SARS-CoV-2 main protease in complex with inhibitor MPI86

PDB DOI: https://doi.org/10.2210/pdb7SH9/pdb

Classification: VIRAL PROTEIN,HYDROLASE/INHIBITOR
Organism(s): Severe acute respiratory syndrome coronavirus 2
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2021-10-08 Released: 2023-04-12
Deposition Author(s): Yang, K.S., Liu, W.R.
Funding Organization(s): Welch Foundation

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.85 Å
R-Value Free: 0.263
R-Value Work: 0.226
R-Value Observed: 0.228

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.3 of the entry. See complete history.

Literature

Structure of the SARS-CoV-2 main protease in complex with inhibitors

Yang, K.S., Sankaran, B., Liu, W.R.

To be published.

Macromolecule Content

Total Structure Weight: 34.46 kDa
Atom Count: 2,637
Modelled Residue Count: 301
Deposited Residue Count: 306
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
3C-like proteinase nsp5	A	306	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0 Gene Names: rep, 1a-1b EC: 3.4.22.69
UniProt
Find proteins for P0DTD1 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTD1 Go to UniProtKB: P0DTD1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P0DTD1
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
9HA (Subject of Investigation/LOI) Query on 9HA Download Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	benzyl [(2S,3R)-1-({(2S)-1-[2-acetyl-2-(3-amino-3-oxopropyl)hydrazinyl]-3-cyclohexyl-1-oxopropan-2-yl}amino)-3-tert-butoxy-1-oxobutan-2-yl]carbamate (non-preferred name) C₃₀ H₄₇ N₅ O₇ SHNDMVPNEQWUDZ-PSUQPPDWSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]

Modified Residues 1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
CSO Query on CSO	A	L-PEPTIDE LINKING	C₃ H₇ N O₃ S		CYS

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.85 Å
R-Value Free: 0.263
R-Value Work: 0.226
R-Value Observed: 0.228
Space Group: I 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 54.381	α = 90
b = 82.783	β = 96.96
c = 85.479	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
PDB_EXTRACT	data extraction
PROTEUM PLUS	data reduction
Aimless	data scaling
PHENIX	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History & Funding Information

Deposition Data

Released Date: 2023-04-12

Deposition Author(s):

Funding Organization	Location	Grant Number
Welch Foundation	United States	--

Revision History (Full details and data files)

Version 1.0: 2023-04-12
Type: Initial release
Version 1.1: 2023-10-25
Changes: Data collection, Refinement description
Version 1.2: 2023-11-15
Changes: Data collection
Version 1.3: 2024-11-13
Changes: Structure summary
