8B2J | pdb_00008b2j

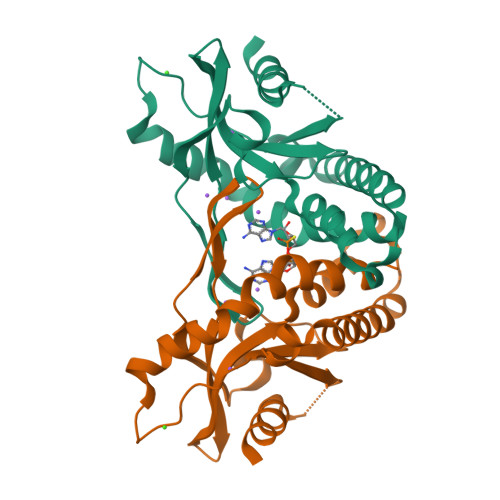

Crystal structure of human STING in complex with ADU-S100

PDB DOI: https://doi.org/10.2210/pdb8B2J/pdb

Classification: IMMUNE SYSTEM
Organism(s): Homo sapiens
Expression System: Escherichia coli
Mutation(s): Yes

Deposited: 2022-09-14 Released: 2022-11-30
Deposition Author(s): Nawrotek, A., Vuillard, L., Miallau, L.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.17 Å
R-Value Free:
0.285 (Depositor), 0.280 (DCC)
R-Value Work:
0.242 (Depositor), 0.240 (DCC)
R-Value Observed:
0.244 (Depositor)

Starting Model: other
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.1 of the entry. See complete history.

Literature

Crystal structure of human STING in complex with ADU-S100

Nawrotek, A., Vuillard, L., Miallau, L.

To be published.

Macromolecule Content

Total Structure Weight: 55.32 kDa
Atom Count: 3,019
Modelled Residue Count: 358
Deposited Residue Count: 484
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Stimulator of interferon genes protein	A, B	242	Homo sapiens	Mutation(s): 1 Gene Names: STING1, ERIS, MITA, STING, TMEM173
UniProt & NIH Common Fund Data Resources
Find proteins for Q86WV6 (Homo sapiens) Explore Q86WV6 Go to UniProtKB: Q86WV6
PHAROS: Q86WV6 GTEx: ENSG00000184584
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q86WV6
Sequence Annotations Expand
Reference Sequence LOADING

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
GJF Query on GJF Download Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	(1~{R},3~{S},6~{R},8~{R},9~{R},10~{S},12~{S},15~{R},17~{R},18~{R})-8,17-bis(6-aminopurin-9-yl)-3,12-bis(oxidanylidene)-3,12-bis(sulfanyl)-2,4,7,11,13,16-hexaoxa-3$l^{5},12$l^{5}-diphosphatricyclo[13.2.1.0^{6,10}]octadecane-9,18-diol C₂₀ H₂₄ N₁₀ O₁₀ P₂ S₂ IZJJFUQKKZFVLH-ZPTFDBAZSA-N		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]
CA Query on CA Download Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain I [auth B] MOL2 format, chain D [auth A] MOL2 format, chain I [auth B] mmCIF format, chain D [auth A] mmCIF format, chain I [auth B]	D [auth A], I [auth B]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Focus chain I [auth B] Interactions & Density Focus chain D [auth A] Focus chain I [auth B]
NA Query on NA Download Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain J [auth B] SDF format, chain K [auth B] SDF format, chain L [auth B] SDF format, chain M [auth B] SDF format, chain H [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain J [auth B] MOL2 format, chain K [auth B] MOL2 format, chain L [auth B] MOL2 format, chain M [auth B] MOL2 format, chain H [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain J [auth B] mmCIF format, chain K [auth B] mmCIF format, chain L [auth B] mmCIF format, chain M [auth B] mmCIF format, chain H [auth A]	E [auth A] F [auth A] G [auth A] H [auth A] J [auth B] E [auth A], F [auth A], G [auth A], H [auth A], J [auth B], K [auth B], L [auth B], M [auth B]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth B] Focus chain M [auth B] Interactions & Density Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth B] Focus chain M [auth B]
