1EK2

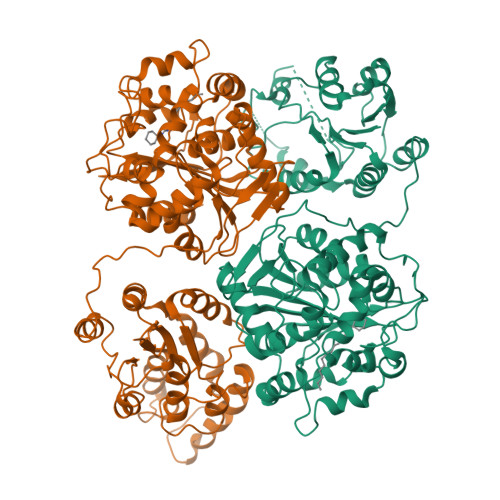

CRYSTAL STRUCTURE OF MURINE SOLUBLE EPOXIDE HYDROLASE COMPLEXED WITH CDU INHIBITOR


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.00 Å
  • R-Value Free: 0.290
  • R-Value Work: 0.211

wwPDB Validation   3D Report Full Report


This is version 1.3 of the entry. See complete history


Literature

Binding of alkylurea inhibitors to epoxide hydrolase implicates active site tyrosines in substrate activation.

Argiriadi, M.A.Morisseau, C.Goodrow, M.H.Dowdy, D.L.Hammock, B.D.Christianson, D.W.

(2000) J Biol Chem 275: 15265-15270

  • DOI: https://doi.org/10.1074/jbc.M000278200
  • Primary Citation of Related Structures:
    1EK1, 1EK2

  • PubMed Abstract:

    The structures of two alkylurea inhibitors complexed with murine soluble epoxide hydrolase have been determined by x-ray crystallographic methods. The alkyl substituents of each inhibitor make extensive hydrophobic contacts in the soluble epoxide hydrolase active site, and each urea carbonyl oxygen accepts hydrogen bonds from the phenolic hydroxyl groups of Tyr(381) and Tyr(465). These hydrogen bond interactions suggest that Tyr(381) and/or Tyr(465) are general acid catalysts that facilitate epoxide ring opening in the first step of the hydrolysis reaction; Tyr(465) is highly conserved among all epoxide hydrolases, and Tyr(381) is conserved among the soluble epoxide hydrolases. In one enzyme-inhibitor complex, the urea carbonyl oxygen additionally interacts with Gln(382). If a comparable interaction occurs in catalysis, then Gln(382) may provide electrostatic stabilization of partial negative charge on the epoxide oxygen. The carboxylate side chain of Asp(333) accepts a hydrogen bond from one of the urea NH groups in each enzyme-inhibitor complex. Because Asp(333) is the catalytic nucleophile, its interaction with the partial positive charge on the urea NH group mimics its approach toward the partial positive charge on the electrophilic carbon of an epoxide substrate. Accordingly, alkylurea inhibitors mimic features encountered in the reaction coordinate of epoxide ring opening, and a structure-based mechanism is proposed for leukotoxin epoxide hydrolysis.


  • Organizational Affiliation

    Roy and Diana Vagelos Laboratories, Department of Chemistry, University of Pennsylvania, Philadelphia, Pennsylvania 19104-6323, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
EPOXIDE HYDROLASE
A, B
554Mus musculusMutation(s): 0
EC: 3.3.2.3 (PDB Primary Data), 3.1.3.76 (UniProt), 3.3.2.10 (UniProt)
UniProt
Find proteins for P34914 (Mus musculus)
Explore P34914
Go to UniProtKB:  P34914
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP34914
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
CDU
Query on CDU

Download Ideal Coordinates CCD File
C [auth A],
D [auth B]
N-CYCLOHEXYL-N'-DECYLUREA
C17 H34 N2 O
LPXYBLIRYGCMPQ-UHFFFAOYSA-N
Binding Affinity Annotations
IDSourceBinding Affinity
CDU PDBBind:  1EK2 Ki: 6.3 (nM) from 1 assay(s)
BindingDB:  1EK2 IC50: 50 (nM) from 1 assay(s)
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.00 Å
  • R-Value Free: 0.290
  • R-Value Work: 0.211
  • Space Group: P 21 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 151.9α = 90
b = 143β = 90
c = 60γ = 90
Software Package:
Software NamePurpose
X-PLORmodel building
X-PLORrefinement
DENZOdata reduction
SCALEPACKdata scaling
X-PLORphasing

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2000-05-31
    Type: Initial release
  • Version 1.1: 2008-04-27
    Changes: Version format compliance
  • Version 1.2: 2011-07-13
    Changes: Version format compliance
  • Version 1.3: 2024-02-07
    Changes: Data collection, Database references, Derived calculations
