1QC6 | pdb_00001qc6

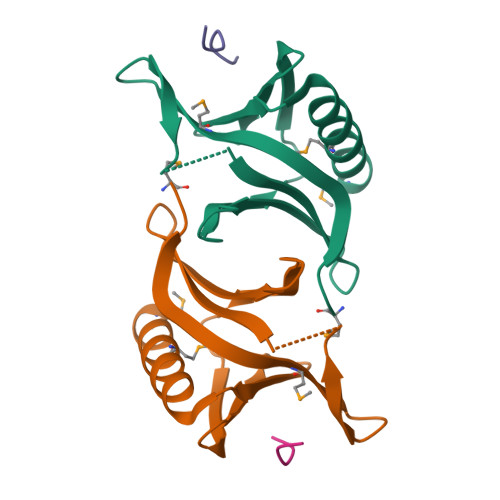

EVH1 domain from ENA/VASP-like protein in complex with ACTA peptide

• PDB DOI: https://doi.org/10.2210/pdb1QC6/pdb

• Classification: STRUCTURAL PROTEIN
• Organism(s): Mus musculus
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 1999-05-17 Released: 1999-05-25
• Deposition Author(s): Fedorov, A.A., Fedorov, E.V., Gertler, F.B., Almo, S.C.

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.60 Å
• R-Value Free:
  0.298 (Depositor)
• R-Value Work:
  0.215 (Depositor)
• R-Value Observed:
  0.225 (Depositor)

Literature

Structure of EVH1, a novel proline-rich ligand-binding module involved in cytoskeletal dynamics and neural function

Fedorov, A.A., Fedorov, E., Gertler, F., Almo, S.C.

(1999) Nat Struct Biol 6: 661-665

• PubMed: 10404224
• DOI: https://doi.org/10.1038/10717
• Primary Citation of Related Structures:
  1QC6


• PubMed Abstract:


  The Ena-VASP homology (EVH1) domain is a protein interaction module found in several proteins that are involved in transducing migratory and morphological signals into cytoskeletal reorganization. EVH1 specifically recognizes proline-rich sequences in its binding partners and directs the localization and formation of multicomponent assemblies involved in actin-based motile processes and neural development. The structure of the complex between an EVH1 domain and the target peptide sequence EFPPPPT identifies the interactions responsible for recognition and distinguishes it from other proline-rich binding modules, including SH3 and WW domains. Surprisingly, the EVH1 domain has structural similarity to pleckstrin homology (PH), phosphotyrosine-binding (PTB) and ran-binding (RanBD) domains.

---

Organizational Affiliation:

Department of Biochemistry, Albert Einstein College of Medicine, Bronx, New York 10461, USA.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 4-mer - A2B1C1 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - A2

Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors.

Macromolecule Content

• Total Structure Weight: 32.2 kDa
• Atom Count: 1,843
• Modelled Residue Count: 228
• Deposited Residue Count: 282
• Unique protein chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
EVH1 DOMAIN FROM ENA/VASP-LIKE PROTEIN	A, C [auth B]	130	Mus musculus	Mutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P70429 (Mus musculus) Explore P70429  Go to UniProtKB:  P70429
IMPC:  MGI:1194884

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
PHE-GLU-PHE-PRO-PRO-PRO-PRO-THR-ASP-GLU-GLU	B [auth C], D	11	N/A	Mutation(s): 0

Small Molecules

Modified Residues  1 Unique
ID	Chains	Type	Formula	2D Diagram	Parent
MSE	A, C [auth B]	L-PEPTIDE LINKING	C5 H11 N O2 Se		MET

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.60 Å
• R-Value Free:  0.298 (Depositor)
• R-Value Work:  0.215 (Depositor)
• R-Value Observed: 0.225 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 44.883	α = 90
b = 68.257	β = 90
c = 82.219	γ = 90

Software Package:

Software Name	Purpose
DENZO	data reduction
SCALEPACK	data scaling
SOLVE	phasing
DM	model building
X-PLOR	refinement
DM	phasing

Structure Validation

Entry History

Deposition Data

• Released Date: 1999-05-25
Deposition Author(s): Fedorov, A.A., Fedorov, E.V., Gertler, F.B., Almo, S.C.

Revision History

• Version 1.0: 1999-05-25
  Type: Initial release

• Version 1.1: 2008-04-27
  Changes: Version format compliance
• Version 1.2: 2011-07-13
  Changes: Version format compliance
• Version 1.3: 2018-02-07
  Changes: Experimental preparation
• Version 1.4: 2024-11-20
  Changes: Data collection, Database references, Derived calculations, Structure summary
