4IZH | pdb_00004izh

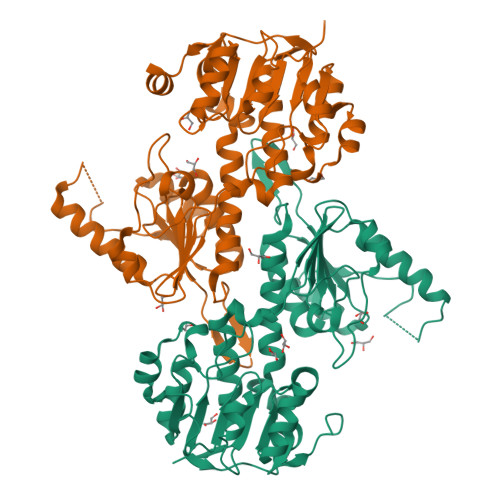

Crystal Structure of the Alpha1 dimer of Thermus thermophilus Transhydrogenase in P6

PDB DOI: https://doi.org/10.2210/pdb4IZH/pdb

Classification: OXIDOREDUCTASE
Organism(s): Thermus thermophilus HB27
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2013-01-29 Released: 2014-01-29
Deposition Author(s): Stout, C.D., Yamaguchi, M., Leung, J.

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.80 Å
R-Value Free:
0.180 (Depositor), 0.170 (DCC)
R-Value Work:
0.167 (Depositor), 0.160 (DCC)
R-Value Observed:
0.168 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.1 of the entry. See complete history.

Literature

Crystal structure analysis of Thermus thermophilus transhydrogenase soluble domains

Leung, J., Yamaguchi, M., Schurig Briccio, L.A., B Gennis, R., Stout, C.D.

To be published.

Macromolecule Content

Total Structure Weight: 82.9 kDa
Atom Count: 5,770
Modelled Residue Count: 726
Deposited Residue Count: 762
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
NAD/NADP transhydrogenase alpha subunit 1	A, B	381	Thermus thermophilus HB27	Mutation(s): 0 EC: 1.6.1.2 (PDB Primary Data), 7.1.1.1 (UniProt)
UniProt
Find proteins for Q72GR8 (Thermus thermophilus (strain ATCC BAA-163 / DSM 7039 / HB27)) Explore Q72GR8 Go to UniProtKB: Q72GR8
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q72GR8
Sequence Annotations Expand
Reference Sequence LOADING

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
GOL Query on GOL Download Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain E [auth A] SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain J [auth B] SDF format, chain K [auth B] SDF format, chain L [auth B] SDF format, chain M [auth B] SDF format, chain N [auth B] SDF format, chain O [auth B] SDF format, chain C [auth A] SDF format, chain F [auth A] SDF format, chain I [auth A] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain J [auth B] MOL2 format, chain K [auth B] MOL2 format, chain L [auth B] MOL2 format, chain M [auth B] MOL2 format, chain N [auth B] MOL2 format, chain O [auth B] MOL2 format, chain C [auth A] MOL2 format, chain F [auth A] MOL2 format, chain I [auth A] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain J [auth B] mmCIF format, chain K [auth B] mmCIF format, chain L [auth B] mmCIF format, chain M [auth B] mmCIF format, chain N [auth B] mmCIF format, chain O [auth B] mmCIF format, chain C [auth A] mmCIF format, chain F [auth A] mmCIF format, chain I [auth A]	C [auth A] D [auth A] E [auth A] F [auth A] G [auth A] C [auth A], D [auth A], E [auth A], F [auth A], G [auth A], H [auth A], I [auth A], J [auth B], K [auth B], L [auth B], M [auth B], N [auth B], O [auth B]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth B] Focus chain M [auth B] Focus chain N [auth B] Focus chain O [auth B] Interactions & Density Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth B] Focus chain M [auth B] Focus chain N [auth B] Focus chain O [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.80 Å
R-Value Free: 0.180 (Depositor), 0.170 (DCC)
R-Value Work: 0.167 (Depositor), 0.160 (DCC)
R-Value Observed: 0.168 (Depositor)

Space Group: P 6

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 162.318	α = 90
b = 162.318	β = 90
c = 73.883	γ = 120

Software Package:

Software Name	Purpose
ADSC	data collection
PHASER	phasing
REFMAC	refinement
XDS	data reduction
SCALA	data scaling

Structure Validation

View Full Validation Report

Entry History

Deposition Data

Released Date: 2014-01-29

Deposition Author(s):

Stout, C.D.

Yamaguchi, M.

Leung, J.

Revision History (Full details and data files)

Version 1.0: 2014-01-29
Type: Initial release
Version 1.1: 2023-09-20
Changes: Data collection, Database references, Derived calculations, Refinement description
