5A2K | pdb_00005a2k

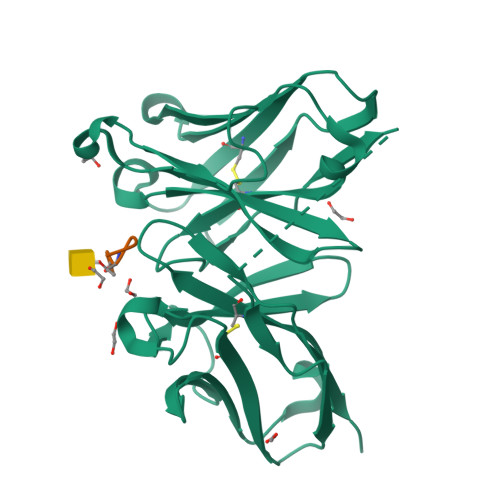

Crystal structure of scFv-SM3 in complex with APD-TGalNAc-RP


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free:
    0.216 (Depositor), 0.220 (DCC)
  • R-Value Work:
    0.176 (Depositor), 0.180 (DCC)
  • R-Value Observed:
    0.177 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted A2GClick on this verticalbar to view details

This is version 2.2 of the entry. See complete history


Literature

Deciphering the Non-Equivalence of Serine and Threonine O-Glycosylation Points: Implications for Molecular Recognition of the Tn Antigen by an Anti-Muc1 Antibody.

Martinez-Saez, N.Castro-Lopez, J.Valero-Gonzalez, J.Madariaga, D.Companon, I.Somovilla, V.J.Salvado, M.Asensio, J.L.Jimenez-Barbero, J.Avenoza, A.Busto, J.H.Bernardes, G.J.L.Peregrina, J.M.Hurtado-Guerrero, R.Corzana, F.

(2015) Angew Chem Int Ed Engl 54: 9830

  • DOI: https://doi.org/10.1002/anie.201502813
  • Primary Citation of Related Structures:
    5A2I, 5A2J, 5A2K, 5A2L

  • PubMed Abstract:

    The structural features of MUC1-like glycopeptides bearing the Tn antigen (α-O-GalNAc-Ser/Thr) in complex with an anti MUC-1 antibody are reported at atomic resolution. For the α-O-GalNAc-Ser derivative, the glycosidic linkage adopts a high-energy conformation, barely populated in the free state. This unusual structure (also observed in an α-S-GalNAc-Cys mimic) is stabilized by hydrogen bonds between the peptidic fragment and the sugar. The selection of a particular peptide structure by the antibody is thus propagated to the carbohydrate through carbohydrate/peptide contacts, which force a change in the orientation of the sugar moiety. This seems to be unfeasible in the α-O-GalNAc-Thr glycopeptide owing to the more limited flexibility of the side chain imposed by the methyl group. Our data demonstrate the non-equivalence of Ser and Thr O-glycosylation points in molecular recognition processes. These features provide insight into the occurrence in nature of the APDTRP epitope for anti-MUC1 antibodies.


  • Organizational Affiliation

    Departamento de Química, Universidad de La Rioja, Centro de Investigación en Síntesis Química, 26006 Logroño (Spain).


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
IG LAMBDA-1 CHAIN V REGION S43A [auth H]244Mus musculusMutation(s): 0
UniProt
Find proteins for P01727 (Mus musculus)
Explore P01727
Go to UniProtKB:  P01727
Find proteins for P01801 (Mus musculus)
Explore P01801
Go to UniProtKB:  P01801
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupsP01801P01727
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
ANTIGEN TN, THR IS COVALENTLY BOUND TO GALNACB [auth P]6Homo sapiensMutation(s): 0
Glycosylation
Glycosylation Sites: 1
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free:  0.216 (Depositor), 0.220 (DCC)
  • R-Value Work:  0.176 (Depositor), 0.180 (DCC)
  • R-Value Observed: 0.177 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 35.418α = 90
b = 68.796β = 90
c = 90.414γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
XDSdata reduction
SCALEPACKdata scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment

Created with Raphaël 2.3.0Worse 01 BetterLigand structure goodness of fit to experimental dataBest fitted A2GClick on this verticalbar to view details

Entry History

Revision History  (Full details and data files)

  • Version 1.0: 2015-06-03
    Type: Initial release
  • Version 1.1: 2015-07-08
    Changes: Database references
  • Version 1.2: 2015-08-26
    Changes: Database references
  • Version 2.0: 2020-07-29
    Type: Remediation
    Reason: Carbohydrate remediation
    Changes: Atomic model, Data collection, Derived calculations, Other, Structure summary
  • Version 2.1: 2024-01-10
    Changes: Data collection, Database references, Refinement description, Structure summary
  • Version 2.2: 2024-11-13
    Changes: Structure summary
