6B0W

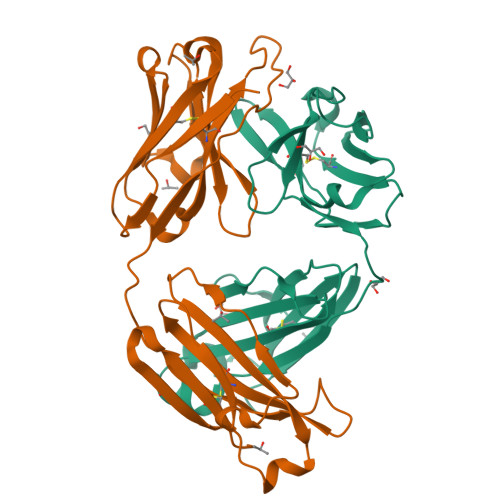

Crystal structure of the anti-circumsporozoite protein 1710 antibody


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.90 Å
  • R-Value Free: 0.218
  • R-Value Work: 0.183
  • R-Value Observed: 0.185

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.4 of the entry. See complete history


Literature

Rare PfCSP C-terminal antibodies induced by live sporozoite vaccination are ineffective against malaria infection.

Scally, S.W.Murugan, R.Bosch, A.Triller, G.Costa, G.Mordmuller, B.Kremsner, P.G.Sim, B.K.L.Hoffman, S.L.Levashina, E.A.Wardemann, H.Julien, J.P.

(2018) J Exp Med 215: 63-75

  • DOI: https://doi.org/10.1084/jem.20170869
  • Primary Citation of Related Structures:
    6B0S, 6B0W

  • PubMed Abstract:

    Antibodies against the central repeat of the Plasmodium falciparum (Pf) circumsporozoite protein (CSP) inhibit parasite activity and correlate with protection from malaria. However, the humoral response to the PfCSP C terminus (C-PfCSP) is less well characterized. Here, we describe B cell responses to C-PfCSP from European donors who underwent immunization with live Pf sporozoites (PfSPZ Challenge) under chloroquine prophylaxis (PfSPZ-CVac), and were protected against controlled human malaria infection. Out of 215 PfCSP-reactive monoclonal antibodies, only two unique antibodies were specific for C-PfCSP, highlighting the rare occurrence of C-PfCSP-reactive B cells in PfSPZ-CVac-induced protective immunity. These two antibodies showed poor sporozoite binding and weak inhibition of parasite traversal and development, and did not protect mice from infection with PfCSP transgenic Plasmodium berghei sporozoites. Structural analyses demonstrated that one antibody interacts with a polymorphic region overlapping two T cell epitopes, suggesting that variability in C-PfCSP may benefit parasite escape from humoral and cellular immunity. Our data identify important features underlying C-PfCSP shortcomings as a vaccine target.


  • Organizational Affiliation

    Program in Molecular Medicine, Hospital for Sick Children Research Institute, Toronto, Ontario, Canada.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
1710 antibody, light chainA [auth L]213Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
1710 antibody, heavy chainB [auth H]226Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
GOL
Query on GOL

Download Ideal Coordinates CCD File
D [auth L]
E [auth L]
F [auth L]
G [auth L]
M [auth H]
D [auth L],
E [auth L],
F [auth L],
G [auth L],
M [auth H],
N [auth H]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
IPA
Query on IPA

Download Ideal Coordinates CCD File
C [auth L]
H
I [auth H]
J [auth H]
K [auth H]
C [auth L],
H,
I [auth H],
J [auth H],
K [auth H],
L [auth H]
ISOPROPYL ALCOHOL
C3 H8 O
KFZMGEQAYNKOFK-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.90 Å
  • R-Value Free: 0.218
  • R-Value Work: 0.183
  • R-Value Observed: 0.185
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 61.063α = 90
b = 66.724β = 90
c = 124.027γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata reduction
XPREPdata scaling
PHENIXphasing

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2017-11-08
    Type: Initial release
  • Version 1.1: 2017-12-06
    Changes: Database references
  • Version 1.2: 2018-01-10
    Changes: Database references
  • Version 1.3: 2023-10-04
    Changes: Data collection, Database references, Refinement description
  • Version 1.4: 2024-10-30
    Changes: Structure summary
