6MQR

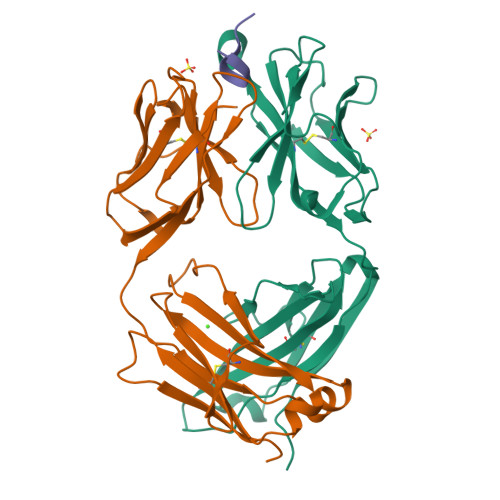

Vaccine-elicited NHP FP-targeting neutralizing antibody 0PV-a.01 in complex with FP (residue 512-519)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.45 Å
  • R-Value Free: 0.208
  • R-Value Work: 0.175
  • R-Value Observed: 0.177

wwPDB Validation   3D Report Full Report


This is version 1.3 of the entry. See complete history


Literature

Antibody Lineages with Vaccine-Induced Antigen-Binding Hotspots Develop Broad HIV Neutralization.

Kong, R.Duan, H.Sheng, Z.Xu, K.Acharya, P.Chen, X.Cheng, C.Dingens, A.S.Gorman, J.Sastry, M.Shen, C.H.Zhang, B.Zhou, T.Chuang, G.Y.Chao, C.W.Gu, Y.Jafari, A.J.Louder, M.K.O'Dell, S.Rowshan, A.P.Viox, E.G.Wang, Y.Choi, C.W.Corcoran, M.M.Corrigan, A.R.Dandey, V.P.Eng, E.T.Geng, H.Foulds, K.E.Guo, Y.Kwon, Y.D.Lin, B.Liu, K.Mason, R.D.Nason, M.C.Ohr, T.Y.Ou, L.Rawi, R.Sarfo, E.K.Schon, A.Todd, J.P.Wang, S.Wei, H.Wu, W.Mullikin, J.C.Bailer, R.T.Doria-Rose, N.A.Karlsson Hedestam, G.B.Scorpio, D.G.Overbaugh, J.Bloom, J.D.Carragher, B.Potter, C.S.Shapiro, L.Kwong, P.D.Mascola, J.R.

(2019) Cell 178: 567-584.e19

  • DOI: https://doi.org/10.1016/j.cell.2019.06.030
  • Primary Citation of Related Structures:
    6MPG, 6MPH, 6MQC, 6MQE, 6MQM, 6MQR, 6MQS, 6N16, 6N1V, 6N1W, 6NF2, 6OSY, 6OT1

  • PubMed Abstract:

    The vaccine-mediated elicitation of antibodies (Abs) capable of neutralizing diverse HIV-1 strains has been a long-standing goal. To understand how broadly neutralizing antibodies (bNAbs) can be elicited, we identified, characterized, and tracked five neutralizing Ab lineages targeting the HIV-1-fusion peptide (FP) in vaccinated macaques over time. Genetic and structural analyses revealed two of these lineages to belong to a reproducible class capable of neutralizing up to 59% of 208 diverse viral strains. B cell analysis indicated each of the five lineages to have been initiated and expanded by FP-carrier priming, with envelope (Env)-trimer boosts inducing cross-reactive neutralization. These Abs had binding-energy hotspots focused on FP, whereas several FP-directed Abs induced by immunization with Env trimer-only were less FP-focused and less broadly neutralizing. Priming with a conserved subregion, such as FP, can thus induce Abs with binding-energy hotspots coincident with the target subregion and capable of broad neutralization.


  • Organizational Affiliation

    Vaccine Research Center, National Institute of Allergy and Infectious Diseases, NIH, Bethesda, MD 20892, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
antibody 0PV-A.01 Fab heavy chainA [auth H]228Macaca mulattaMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
antibody 0PV-A.01 Fab light chainB [auth L]214Macaca mulattaMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
HIV fusion peptide residue 512-519C [auth A]8Human immunodeficiency virus 1Mutation(s): 0
UniProt
Find proteins for P04578 (Human immunodeficiency virus type 1 group M subtype B (isolate HXB2))
Explore P04578
Go to UniProtKB:  P04578
Entity Groups
UniProt GroupP04578
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.45 Å
  • R-Value Free: 0.208
  • R-Value Work: 0.175
  • R-Value Observed: 0.177
  • Space Group: I 2 3
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 159.25α = 90
b = 159.25β = 90
c = 159.25γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
HKL-2000data scaling
PDB_EXTRACTdata extraction
HKL-2000data reduction
PHASERphasing

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2019-07-31
    Type: Initial release
  • Version 1.1: 2019-08-07
    Changes: Data collection, Database references
  • Version 1.2: 2019-11-13
    Changes: Source and taxonomy
  • Version 1.3: 2024-11-06
    Changes: Data collection, Database references, Structure summary
