6TAM

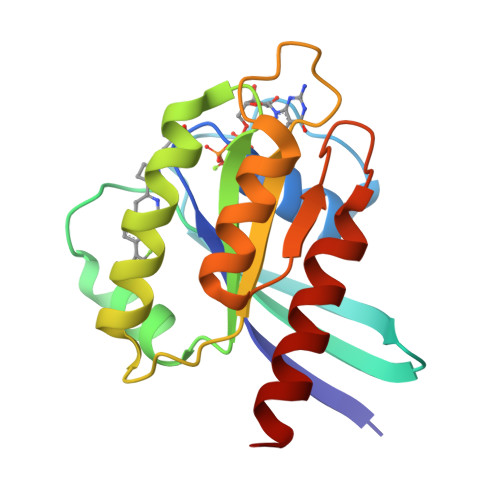

X-RAY STRUCTURE OF HUMAN K-RAS G12C IN COMPLEX WITH COVALENT ISOQUINOLINONE INHIBITOR (COMPOUND 3)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.64 Å
  • R-Value Free: 0.201
  • R-Value Work: 0.174
  • R-Value Observed: 0.175

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.3 of the entry. See complete history


Literature

Computationally Empowered Workflow Identifies Novel Covalent Allosteric Binders for KRASG12C.

Mortier, J.Friberg, A.Badock, V.Moosmayer, D.Schroeder, J.Steigemann, P.Siegel, F.Gradl, S.Bauser, M.Hillig, R.C.Briem, H.Eis, K.Bader, B.Nguyen, D.Christ, C.D.

(2020) ChemMedChem 15: 827-832

  • DOI: https://doi.org/10.1002/cmdc.201900727
  • Primary Citation of Related Structures:
    6TAM, 6TAN

  • PubMed Abstract:

    Due to its frequent mutations in multiple lethal cancers, KRAS is one of the most-studied anticancer targets nowadays. Since the discovery of the druggable allosteric binding site containing a G12C mutation, KRAS G12C has been the focus of attention in oncology research. We report here a computationally driven approach aimed at identifying novel and selective KRAS G12C covalent inhibitors. The workflow involved initial enumeration of virtual molecules tailored for the KRAS allosteric binding site. Tools such as pharmacophore modeling, docking, and free-energy perturbations were deployed to prioritize the compounds with the best profiles. The synthesized naphthyridinone scaffold showed the ability to react with G12C and inhibit KRAS G12C . Analogues were prepared to establish structure-activity relationships, while molecular dynamics simulations and crystallization of the inhibitor-KRAS G12C complex highlighted an unprecedented binding mode.


  • Organizational Affiliation

    Bayer AG, Research & Development, Pharmaceuticals, Müllerstrasse 178, 13342, Berlin, Germany.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
GTPase KRas170Homo sapiensMutation(s): 4
Gene Names: KRASKRAS2RASK2
EC: 3.6.5.2
UniProt & NIH Common Fund Data Resources
Find proteins for P01116 (Homo sapiens)
Explore P01116
Go to UniProtKB:  P01116
PHAROS:  P01116
GTEx:  ENSG00000133703
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP01116
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.64 Å
  • R-Value Free: 0.201
  • R-Value Work: 0.174
  • R-Value Observed: 0.175
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 41.144α = 90
b = 58.522β = 90
c = 66.141γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
XDSdata reduction
XSCALEdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2020-04-08
    Type: Initial release
  • Version 1.1: 2020-04-15
    Changes: Database references
  • Version 1.2: 2020-06-03
    Changes: Database references
  • Version 1.3: 2024-11-13
    Changes: Advisory, Data collection, Database references, Derived calculations, Structure summary
