9J0U

Crystal structure of monomeric PLP-dependent transaminase from Desulfobacula toluolica in F 41 3 2 space group

• PDB DOI: https://doi.org/10.2210/pdb9J0U/pdb

• Classification: TRANSFERASE
• Organism(s): Desulfobacula toluolica
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2024-08-03 Released: 2024-09-18
• Deposition Author(s): Matyuta, I.O., Bakunova, A.K., Nikolaeva, A.Y., Rakitina, T.V., Bezsudnova, E.Y., Popov, V.O., Boyko, K.M.
• Funding Organization(s): Not funded

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.58 Å
• R-Value Free: 0.253
• R-Value Work: 0.209
• R-Value Observed: 0.211

Starting Model: in silico

Literature

High/low resolution monomeric PLP-dependent transaminase from Desulfobacula toluolica

Matyuta, I.O., Bakunova, A.K., Nikolaeva, A.Y., Rakitina, T.V., Popov, V.O., Bezsudnova, E.Y., Boyko, K.M.

To be published.

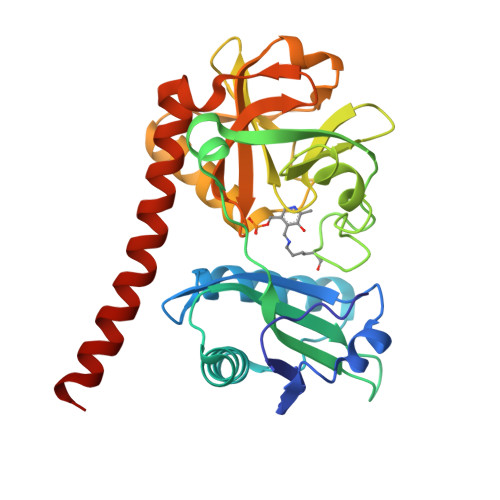

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 32.3 kDa
• Atom Count: 2,268
• Modelled Residue Count: 286
• Deposited Residue Count: 286
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Dat: predicted D-alanine aminotransferase	A	286	Desulfobacula toluolica	Mutation(s): 0  EC: 2.6.1.21
UniProt
Find proteins for K0NPP0 (Desulfobacula toluolica (strain DSM 7467 / Tol2)) Explore K0NPP0  Go to UniProtKB:  K0NPP0

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
PLP (Subject of Investigation/LOI)	B [auth A]	PYRIDOXAL-5'-PHOSPHATE C8 H10 N O6 P NGVDGCNFYWLIFO-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.58 Å
• R-Value Free: 0.253
• R-Value Work: 0.209
• R-Value Observed: 0.211
• Space Group: F 4₁ 3 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 250.089	α = 90
b = 250.089	β = 90
c = 250.089	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
Aimless	data scaling
DIALS	data reduction
MOLREP	phasing
PDB_EXTRACT	data extraction

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2024-09-18
Deposition Author(s): Matyuta, I.O., Bakunova, A.K., Nikolaeva, A.Y., Rakitina, T.V., Bezsudnova, E.Y., Popov, V.O., Boyko, K.M.

---

Funding Organization	Location	Grant Number
Not funded		--

Revision History

• Version 1.0: 2024-09-18
  Type: Initial release
